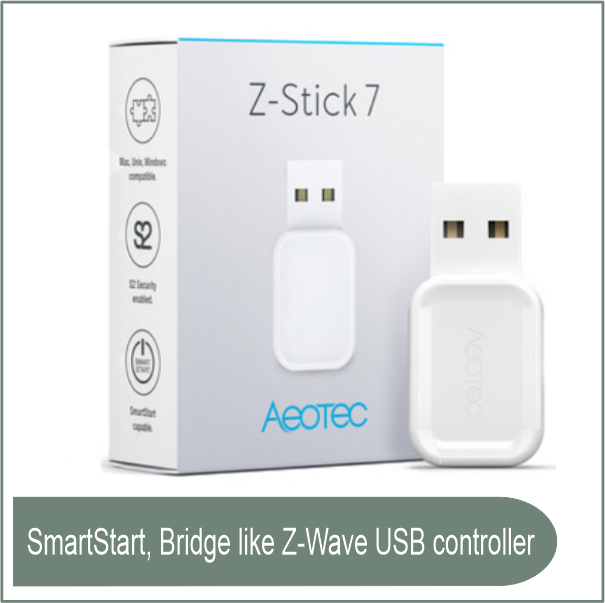

Z-Stick 7
SKU: AEO-0002-S04
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Aeotec Z-Stick 7 is a Z-Wave Plus USB controller that enables Z-Wave smart home control on computers, single-board computers, and automation platforms.
It enables direct communication between a host system and Z-Wave sensors, switches, controllers, and other smart devices, eliminating the need for a specialized hub.
Buy currently uses Select Automation shop pricing and checkout.
Features:
700 Series Z-Wave Chipset: Offers faster communication, improved security, extended range, and lower power consumption compared to the older 500 series.
Z-Wave Plus V2: Supports the latest Z-Wave Plus V2 standard, which enhances device performance, battery life, and adds SmartStart and S2 security protocols.
Backward Compatibility: Works with previous Z-Wave and Z-Wave Plus devices (including 100, 300, and 500 series devices).
SmartStart: S2 Security: Advanced encryption (S2) for secure communication and protection against hacking.
USB Plug-and-Play: Easy setup on Windows, Linux, macOS, and Raspberry Pi via USB 2.0.
Low Power Consumption: Optimized for energy-efficient operation, ensuring minimal power draw when connected.
Wide Wireless Range: Extended range up to 100 meters indoors, providing better network coverage in larger spaces.
OTA Firmware Upgrades: Supports over-the-air (OTA) updates for connected Z-Wave devices, ensuring you can easily update device firmware.
High Compatibility: Works with home automation platforms like Home Assistant, OpenHAB, Domoticz, and others.
Portable Inclusion: Can be unplugged to allow for local device inclusion without the need for a permanent PC connection (with a built-in button for inclusion/exclusion).
Specifications:
Chipset: Z-Wave 700 series.
Interface: USB 2.0.
Power Supply: USB-powered (5V).
Frequency: Based on region (868.42 MHz for EU, 908.42 MHz for US, 921.42 MHz for AU/NZ).
Range: Up to 100 meters indoors (line of sight).
Dimensions: 76mm x 17mm x 9mm.
Operating Temperature: 0°C to 40°C.
Storage Temperature: -20°C to 60°C.
Operating System Support: Windows, macOS, Linux, Raspberry Pi.
Z-Wave Standard: Z-Wave Plus V2 with SmartStart and S2.
Battery: No battery (unlike the Gen5 model, this version does not have a battery for portable operation).
Works with:
Z-Wave compatible devices:
Any Z-Wave or Z-Wave Plus devices to integrate into your network.
Smart Home Hub or Software:
Home automation software (e.g., Home Assistant, OpenHAB, SmartThings) or a compatible hub like a Raspberry Pi or a PC running a Z-Wave compatible platform.
