Heavy Duty Smart Switch Gen5
SKU: AEO-0015-S04
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

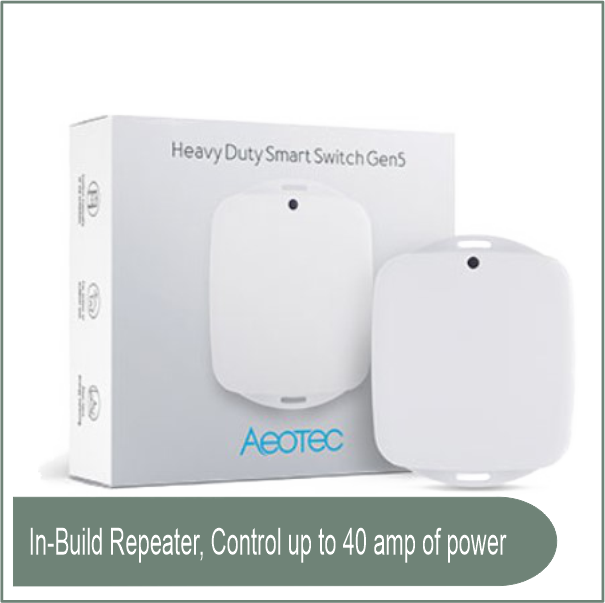

The Aeotec Heavy Duty Smart Switch Gen5 is a high-capacity Z-Wave Plus smart relay that can remotely control and monitor large electrical loads of up to 40 A (9.6 kW at 240 VAC).
It is suitable for controlling high-power devices like water heaters, pool pumps, air conditioners, electric heaters, EV charging circuits, irrigation systems, and other large electrical appliances.
Using Aeotec Gen5 technology, the switch provides dependable long-range Z-Wave communication, real-time energy monitoring, and remote on/off control via a compatible Z-Wave gateway.
It also serves as a Z-Wave repeater, which strengthens the overall mesh network.
It is designed for professional hardwired installations and comes in an IP44-rated enclosure for indoor and outdoor use.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Wireless Control: Remotely manage connected appliances via Z-Wave controllers, apps, or gateways.
Automation Scheduling: Set schedules for powering devices on/off only when necessary.
Energy Monitoring: Provides real-time power consumption reports in watts and kilowatt-hours.
Emergency Control: Can remotely turn off devices during emergencies via Z-Wave.
Indoor & Outdoor Use: IP44 water-resistant rating for safe use in outdoor environments, along with a long-range Z-Wave antenna capable of up to 150 meters of communication.
Z-Wave Repeater: Functions as a Z-Wave repeater to extend the range of your Z-Wave network.
Specifications:
Power Supply:
240VAC, 50/60Hz, Max 9600W (40A resistor).
120VAC, Max 4800W (40A resistor).
Motor Support: Supports 5HP AC motors.
Energy Sensor: Minimum reading of 2W.
IP Rating: IP44 for water resistance.
Range: Up to 150 meters outdoors.
Dimensions: 5.9 x 4.7 x 1.6 inches (150 x 119 x 41 mm).
Operating Temperature: 5°C to 40°C.
Humidity: Up to 80% relative humidity.
Compatibility:
Requires:
No additional products required for basic operation, as the Heavy Duty Smart Switch Gen5 is a Z-Wave device designed to control high-power appliances.
Works with:
Aeotec Z-Wave devices:
Works with other Aeotec Z-Wave devices like sensors, lights, and plugs for automation and control.
Smart Home Hub:
Compatible with Aeotec or third-party Z-Wave hubs like SmartThings or other Z-Wave controllers for automation and monitoring.
Z-Wave network:
Integrates into a Z-Wave network to automate or control high-power appliances, including lights, fans, and other heavy-duty devices.
Z-Wave compatible devices:
Can be used with other Z-Wave devices for comprehensive automation and scene control.
