MultiSensor 7
SKU: AEO-0019-S04
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

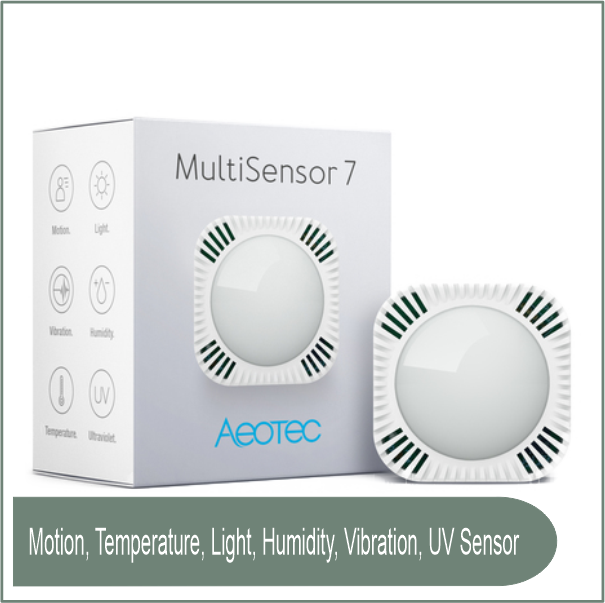

The Aeotec Multi Sensor 7 is a quality 6-in-1 Z-Wave Plus V2 environmental sensor that improves smart home security, comfort, and energy economy.
It uses Aeotec Gen7 (Z-Wave 700 Series) technology to detect motion, temperature, humidity, light (lux), UV index, and vibration (tamper) in a single compact device.
The sensor can be powered by 2 × CR123A batteries or USB, offering versatile installation choices.
When charged by USB, it serves as a Z-Wave repeater, sending sensor updates in
Buy currently uses Select Automation shop pricing and checkout.
Features:
Motion Detection: Detects motion up to 33 feet (10 meters) away with a 120° field of view.
Temperature Sensor: Monitors and reports temperature within the range of -10°C to 50°C (14°F to 122°F).
Humidity Sensor: Measures humidity levels from 20% to 90%, helping to maintain optimal air quality.
Light Sensor: Detects ambient light levels from 0 lux to 30,000 lux, allowing for smart lighting adjustments.
UV Sensor: Monitors UV levels on a scale of 0 to 11, helping to protect health and property from UV damage.
Vibration Sensor: Alerts to vibrations indicating tampering, nearby movement, or even seismic activity.
Power Options: Operates on 2 x CR123A batteries or via USB (micro-USB), providing flexible installation options.
Specifications:
Sensor Types: Motion, Temperature, Humidity, Light, UV, Vibration.
Motion Detection Range: Up to 10 meters (33 feet) at a 120° angle.
Temperature Measurement Range: -10°C to 50°C (14°F to 122°F).
Humidity Measurement Range: 20% to 90% RH.
Ambient Light Measurement Range: 0 lux to 30,000 lux.
UV Index Measurement: 0 to 11 (according to WHO standards).
Power Supply: 2 x CR123A batteries or micro-USB power.
Battery Life: Approximately 3 years on battery (varies with usage).
Wireless Protocol: Z-Wave Plus (700 series).
Operating Temperature: 0°C to 40°C (32°F to 104°F).
Dimensions: 60 mm x 60 mm x 25 mm (2.36 in x 2.36 in x 0.98 in).
Weight: 100 grams.
Z-Wave Range: Up to 150 meters (492 feet) in open air.
Compatibility:
Requires:
No additional products required for basic operation, as the MultiSensor 7 is a Z-Wave device that detects motion, temperature, humidity, light, UV, and vibration.
Works with:
Aeotec Z-Wave devices:Works with other Aeotec Z-Wave devices like smart lights, plugs, dimmers, and thermostats for automation based on sensor readings.
Smart Home Hub:Compatible with Aeotec or third-party Z-Wave hubs like SmartThings, Home Assistant, or other Z-Wave controllers for integration and automation.
Z-Wave network:Integrates into a Z-Wave network to trigger actions or automate tasks, such as turning on lights based on motion detection or adjusting temperature based on humidity.
Z-Wave compatible devices:Can interact with any Z-Wave device within the network, like activating sirens, controlling lights, or adjusting heating/cooling systems.
