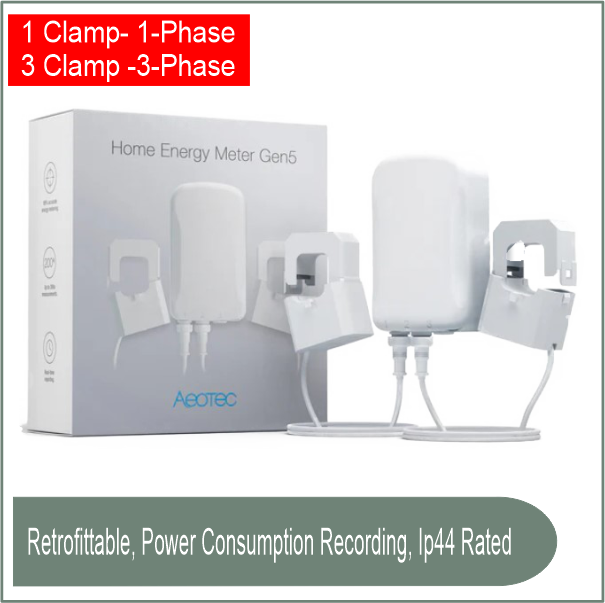

Home Energy Meter Gen5 (1 Phase)
SKU: AEO-0026-S04
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Aeotec Home Energy Meter Gen5 (1 Phase) is a Z-Wave Plus whole-home energy monitoring system that measures electricity consumption in single-phase electrical systems.
It uses a non-invasive current transformer (CT clamp) to accurately monitor real-time energy use without disrupting the electrical circuit, making it appropriate for home and light business applications.
The Home Energy Meter, which uses Aeotec Gen5 technology, provides detailed measurements of energy consumption (kWh), instantaneous power (W), voltage (V), current (A), and reactive power, allowing users to monitor electricity usage, identify energy-hungry appliances, and create energy-saving automations via compatible Z-Wave gateways.
It also serves as a Z-Wave repeater, which strengthens the wireless mesh network for greater reliability.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Real-time monitoring of total home electricity usage
Supports automation based on energy data (e.g., optimizing appliance use)
Z-Wave Plus certified for enhanced range and performance
Detects solar or wind energy overproduction for smarter resource management
Secure data transmission with advanced encryption
Compact design with easy installation at the main breaker box
Reports energy usage via Z-Wave to compatible smart home hubs
Specifications:
Power Input: 120V~, 60Hz, 20mA (US Version)
Standby Consumption: < 1.8W
Voltage Measurement Range: 80V~ to 150V~
Current Measurement Range: 0A to 200A
Measurement Accuracy: Over 99% (if current > 0.05A)
Wireless Range: Up to 130 meters outdoors (427 feet)
Security: AES128 encryption
Repeater Capability: Yes (Z-Wave network extender)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Operating Humidity: 8% to 80%
Dimensions: 99 x 66 x 34 mm
Compatibility:
Requires:
Requires a Z-Wave gateway or hub (e.g., Aeotec Smart Home Hub, SmartThings) for full functionality
Works with:
Compatible with most Z-Wave certified systems
No additional Aeotec products are necessary but can integrate with other Aeotec devices for comprehensive home automation
