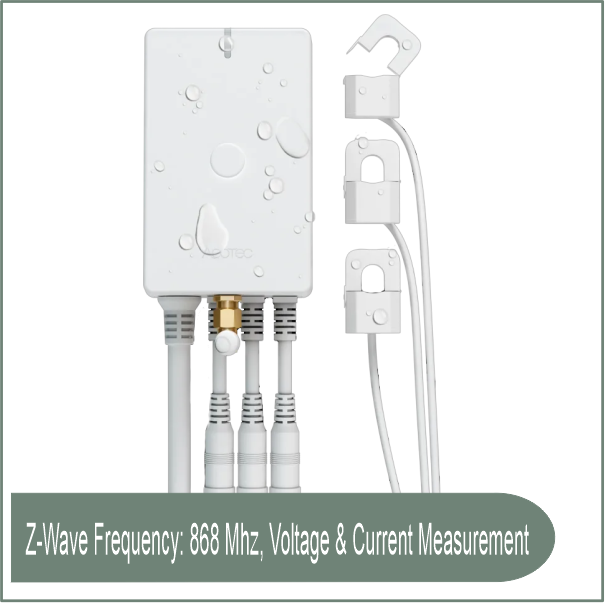

Home Energy Meter 8 (1 Phase)
SKU: AEO-0028-S04
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Aeotec Home Energy Meter 8 (1 Phase) is an innovative Z-Wave 800 Series Long Range energy monitoring solution that measures and reports real-time electricity consumption for single-phase electrical systems.
It uses a non-invasive current transformer (CT clamp) to reliably measure power consumption without disrupting the electrical circuit, making it perfect for home and light commercial energy monitoring.
The Home Energy Meter 8 features Aeotec Gen8 technology and supports Z-Wave Plus V2, Long Range (LR), Smart Start, and S2 Security for dependable, secure communication with compatible Z-Wave controllers.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Z-Wave Plus 800 series with long-range communication (up to 1 mile)
Weatherproof: IP44 rating, resistant to rain and snow when installed vertically
Energy Cost Analysis: Balances consumption and production for precise cost estimation
Universal Fit: Compatible with any electrical installation type
Smart Energy Management: Monitor and control energy usage remotely
Precise Metering: Ensures over 99% accuracy in energy readings
Security: Supports Z-Wave S2 Security
Installation: Can be mounted outside metal circuit boxes for better signal strength
Specifications:
Z-Wave Chipset: EFR32ZG23
Powering:
US version: 120V~, 60Hz, 20mAEU version: 230V~, 50Hz, 10mAMaximum Current: 200AVoltage Measurement Range:USA: 80V~ to 150V~EU: 180V~ to 260V~
Current Measurement Range: 0A to 200A
Accuracy: Over 99% (current >0.05A)
Operating Humidity: 8% to 95%
Operating Temperature: -15°C to 40°C
Wireless Range: Outdoors: up to 492 feet (150 meters) Indoors: up to 131 feet (40 meters)
IP Rating: IP44 (weatherproof)
SmartStart: Yes
Repeater: Yes
Compatibility:
Requires:
Smart Home Hub (e.g., Aeotec Smart Home Hub, SmartThings, Home Assistant)
Z-Wave integration is required for operation, such as a compatible hub and network setup.
