Home Energy Meter 8 (3 Phase)
SKU: AEO-0029-S04
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

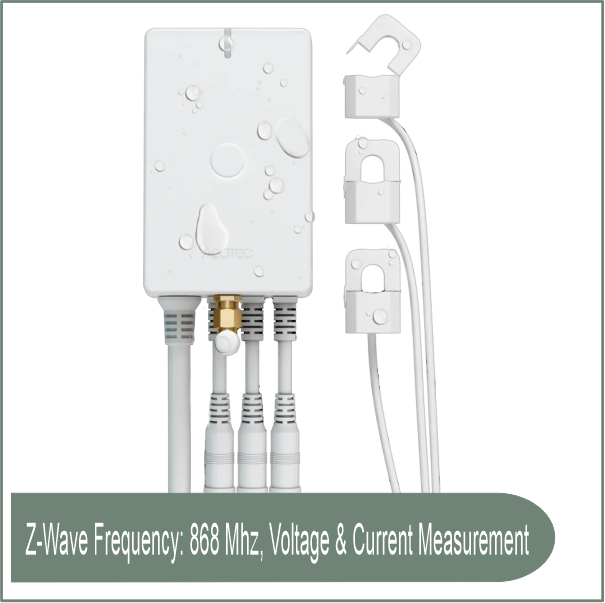

The Aeotec Home Energy Meter 8 (3 Phase) is a professional-grade Z-Wave 800 Series Long Range energy monitoring device that precisely measures electricity consumption in three-phase electrical systems.
It uses three non-invasive current transformer (CT) clamps to monitor each phase separately while giving full real-time energy data without disrupting the electrical supply.
Built on Aeotec Gen8 technology, the Home Energy Meter 8 supports Z-Wave Plus V2, Long Range (LR), Smart Start, and S2 Security, ensuring secure and dependable communication with compatible Z-Wave controllers.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Voltage Input: 230V~, 50Hz (for 3-phase systems)
Voltage Measure Range: 180V~ to 260V~
Current Measure Range: 0A to 60A
Z-Wave Frequency: 868 MHz
Wireless Range: Up to 300 meters (984 feet)
Operating Temperature: Suitable for both humid and cold environments
Power Supply: 10 mA per phase
Integration: Works with Z-Wave Smart Home hubs like SmartThings
Specifications:
Energy Monitoring: Tracks total energy consumption across multiple phases (up to three).
Z-Wave Integration: Can be linked to smart home systems for automation and insights.
Advanced Data Handling: Offers precise power data for home automation, reducing power waste.
Solar Power Utilization: Triggers appliance actions when surplus energy from solar or wind production is available.
Weather Resistant: Designed to operate in various environments, including both hot and cold climates.
Long Wireless Range: Capable of transmitting data over distances of up to 300 meters (984 feet) with Z-Wave Gen8 technology.
Secure Transmission: Uses AES-128 encryption for data security.
Compatibility:
Requires:
Smart Hub:To connect the Home Energy Meter 8, you will need a Z-Wave-compatible smart home hub such as SmartThings
