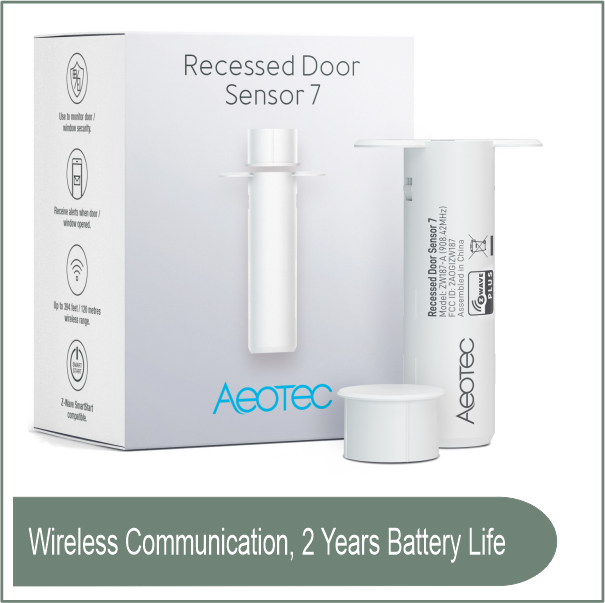

Recessed door Sensor 7
SKU: AEO-0031-S04
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Aeotec Recessed Door Sensor 7 is a discrete Z-Wave Plus V2 door contact sensor that can be put inside the door and frame, making it almost inconspicuous once installed.
Built with Aeotec Gen7 (Z-Wave 700 Series) technology, it detects when a door is opened or closed and wirelessly communicates the status to a compatible Z-Wave controller for security monitoring and smart home management.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Invisible Installation: Designed to be installed directly in the door frame for a seamless look.
Z-Wave Plus V2: Supports advanced wireless security features and simplified installation with SmartStart.
Long Battery Life: Up to 2 years of operation with a replaceable battery.
Smart Automation: Triggers routines based on door status (open or closed).
Enhanced Wireless Range: Improved communication capabilities due to Gen7 technology.
Specifications:
Working Current: 30mA
Standby Current: 10μA (paired), 50μA (unpaired)
Max Standby Power: 0.03mW
Maximum Distance to Magnet: ~1 cm
Waterproof Rating: IP20 (not waterproof)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Operational Humidity: 8% to 80%
Operating Distance:
Indoors: > 40 meters (131 feet)
Outdoors: Up to 150 meters (492 feet)
Battery Type: Lithium cell CR2, 3V, 800mAh
Battery Life: Approximately 2 years (under typical usage: <20 open/close reports and 4 wake-up reports per day)
Compatibility:
Requires:
No additional products required for basic operation, as the Recessed Door Sensor 7 is a Z-Wave device used to detect the opening and closing of doors or windows.
Works with:
Aeotec Z-Wave devices:Works with other Aeotec Z-Wave devices like smart plugs, lights, alarms, and cameras for security or automation.
Smart Home Hub:Compatible with Aeotec or third-party Z-Wave hubs like SmartThings, Home Assistant, or other Z-Wave controllers for integration and automation.
Z-Wave network:Can be added to a Z-Wave network to trigger actions, such as turning on lights when a door is opened or activating security systems.
Z-Wave compatible devices:Can trigger events in other Z-Wave devices like sirens, cameras, or smart thermostats based on door/window status.
