Motion Sensor
SKU: AEO-0034-S04
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

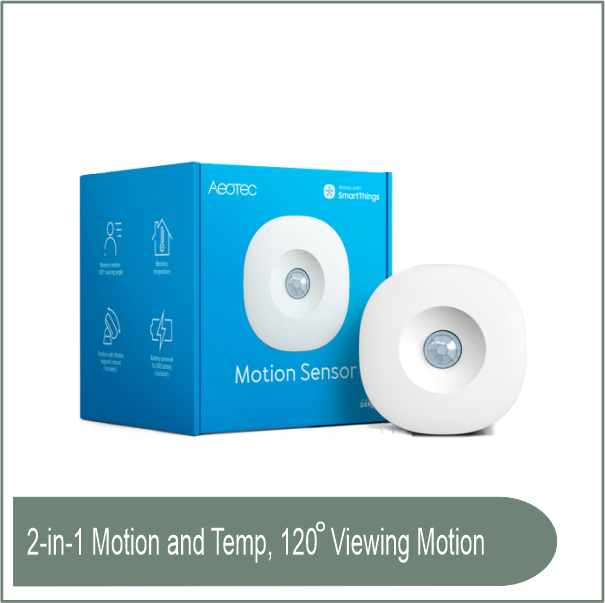

The Aeotec Motion Sensor is a tiny Zigbee 3.0 motion and temperature sensor that improves home security, comfort, and energy economy.
It detects movement within a 120° field of vision from up to 5 metres away and monitors ambient temperature for climate-based automations.
The Motion Sensor, which works with the Aeotec Smart Home Hub and other compatible Zigbee hubs, can activate lights, security alarms, HVAC systems, and other smart devices in response to changes in occupancy or temperature.
Its magnetic mounting bracket can be adjusted for optimal coverage, and its battery-powered design allows for rapid, wire-free installation around the home.
Buy currently uses Select Automation shop pricing and checkout.
Features:
360° motion detection: Capable of detecting motion from a wide range of angles.
Z-Wave Plus technology: Uses the latest Z-Wave Plus protocol for reliable communication and extended range.
Instant notifications: Sends alerts to your phone or smart home system when motion is detected.
Temperature sensor: Measures room temperature for dual functionality.
Tamper protection: Alerts you when someone tries to tamper with or move the sensor.
Low battery notification: Alerts you when battery levels are low to ensure continuous operation.
Compact design: Small and discreet, making it easy to place anywhere.
Easy installation: Mounts easily with adhesive or screws for a quick setup.
Specifications:
Model number: ZW100-A
Z-Wave frequency: 908.42 MHz (for U.S. version), 868.42 MHz (EU version)
Detection range: 5 meters (approximately 16.4 feet)
Viewing angle: 120° horizontally and vertically
Operating temperature: 0°C to 40°C (32°F to 104°F)
Power source: CR123A battery (included)
Battery life: Up to 2 years
Dimensions: 45mm x 45mm x 48mm (1.77 in x 1.77 in x 1.89 in)
Communication protocol: Z-Wave Plus
Max communication range: 150 meters (492 feet) line-of-sight
Compatibility:
Requires:
No additional products required for basic operation, as the Motion Sensor is a Z-Wave device that detects motion and can trigger automation or alerts.
Works with:
Aeotec Z-Wave devices:Works with Aeotec smart plugs, lights, switches, sirens, and cameras for automation based on motion detection.
Smart Home Hub:Compatible with Aeotec or third-party Z-Wave hubs like SmartThings, Home Assistant, or other Z-Wave controllers for integration and automation.
Z-Wave network:Can be part of a Z-Wave network to trigger actions such as turning on lights, sending notifications, or activating security systems when motion is detected.
Z-Wave compatible devices:Can interact with other Z-Wave devices (e.g., sirens, cameras, or smart lights) to enhance security and automation.
