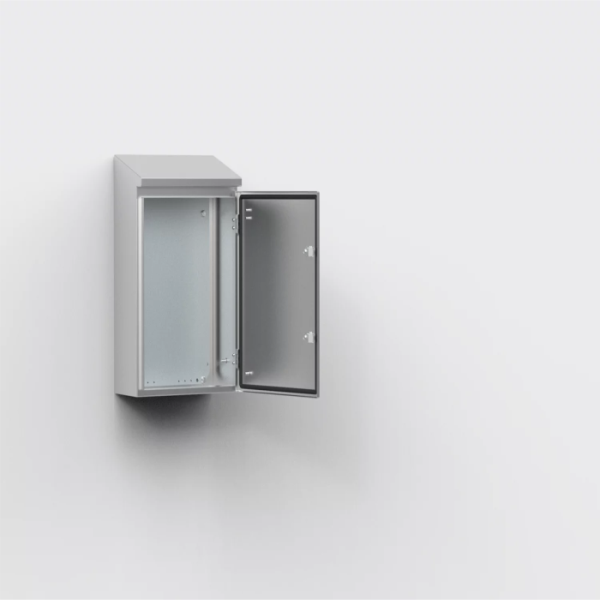

Single door Sloped roof Stainless steel Enclosure AFS04042
SKU: AFS04042
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A sturdy wall-mounted enclosure, the Vent Hoffman Single Door Sloped Roof Stainless Steel Enclosure AFS04042, is made to safeguard electrical and electronic components in challenging conditions.
The integrated sloping roof design is perfect for demanding industries like food and beverage, pharmaceutical, and others since it helps to minimize the buildup of water and dust.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: AISI 304L / AISI 316L pre-grained stainless steel.
Body Thickness: 1.5 mm.
Door Thickness:
AISI 304L: 1.5 mm (2 mm for enclosures with height or width of 600 mm or greater).
AISI 316L: 2 mm.
Mounting Plate: 2 mm galvanized steel.
Dimensions:
Height: 400 mm.
Width: 400 mm.
Depth: 210 mm.
Protection Degree: IP 66.
Industry Standards:
UL 508A Listed; Type 4, 4X, 12.
cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 4, 4X, 12.
NEMA/EEMAC Type 4, 4X, 12.
CSA, File No. 1442951: Type 4, 4X, 12.
IEC 62208.
KEMA, GOST, DNV, CE, Lloyds, Maritime.
Body Construction: Folded and seam welded.
Door: Corner formed in one piece, surface mounted with 130° opening, concealed AISI 304stainless steel hinges with captive pin, can be mounted for left or right-hand opening.
Sealing:
AISI 304L: Injected polyurethane gasket.
AISI 316L: Injected silicone gasket.
Lock: nVent HOFFMAN customized zamak double-bit 3 mm lock with 90° movement and anti-vibration mechanism.
Mounting Plate Features: Marked vertically at 10 mm intervals, holes for cable fixing, fixed onto M8 press welded studs, strengthened by folded edges for enclosures 800 mm and above.
Cable Access: No gland plate openings to maximize sealing and cleanliness.
Protection Ratings: IP 66, TYPE 4X, 12, IK 10.
Finish: 400 pre-grained stainless steel.
