Single door Sloped roof Stainless steel Enclosure AFS06062
SKU: AFS06062
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

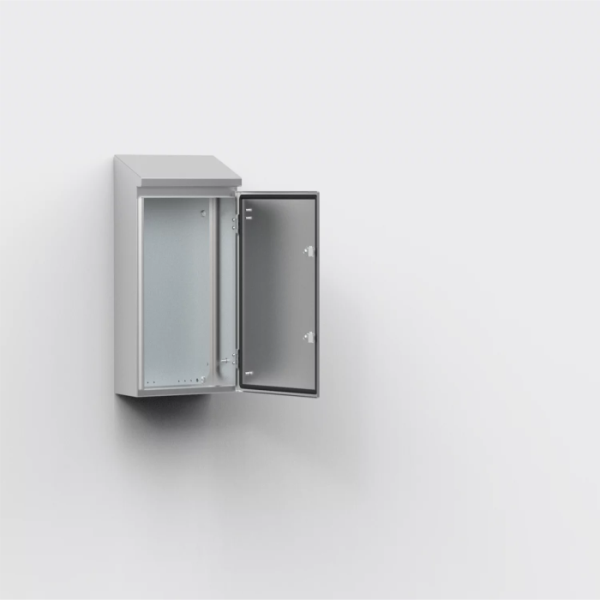

The Vent Hoffman AFS06062 is a premium stainless-steel enclosure with a single entrance and a slanted roof.
It is intended to offer the best possible protection for electronic and electrical components in a range of industrial settings.
To maintain the longevity and dependability of the enclosed equipment, the sloped roof design helps to minimize the buildup of dust and water.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Body: AISI 304L / AISI 316L pre-grained stainless steel.
Door: 1.5 mm for AISI 304L; 2 mm for enclosures with a height or width of 600 mm or greater.
Mounting Plate: 2 mm galvanized steel.
Construction:
Body: Folded and seam welded.
Door: Corner formed in one piece; surface mounted with a 130° opening.
Hinges: Concealed AISI 304 stainless steel hinges with captive pin.
Gasket: Injected polyurethane gasket for AISI 304L; injected silicone gasket for AISI 316L.
Locking Mechanism:
Customized zamak double-bit 3 mm lock with 90° movement and anti-vibration mechanism.
Two locks for enclosures 600 mm to 800 mm high.
Espagnolette three-point locking or three locks for enclosures 1000 mm high and above.
Stainless steel lock and other versions available as accessories.
Mounting Plate:
Marked vertically at 10 mm intervals for easy horizontal positioning of equipment.
Holes on top and bottom for cable fixing.
Fixed onto M8 press welded studs to the rear of the enclosure.
Strengthened by folded edges for enclosures 800 mm and above.
Adjustable depth using the AMG accessory.
Cable Access: No gland plate openings as standard to maximize sealing and cleanliness.
Protection: IP 66 | TYPE 4X, 12 | IK 10.
Metallic key for enclosures 1000 mm and above.
Industry Standards:
UL 508A Listed; Type 4, 4X, 12; File No. E92044.
cUL Listed per CSA C22.2 No.0, No.0.4, No.14, No.94; Type 4, 4X, 12; File No. E92044.
NEMA/EEMAC Type 4, 4X, 12.
CSA, File No. 1442951: Type 4, 4X, 12.
IEC 62208 IP66.
KEMA, GOST, DNV, CE, Lloyds, Maritime.
This enclosure is well-suited for industries such as food and beverage, pharmaceuticals, and other environments requiring high protection against water and dust.
