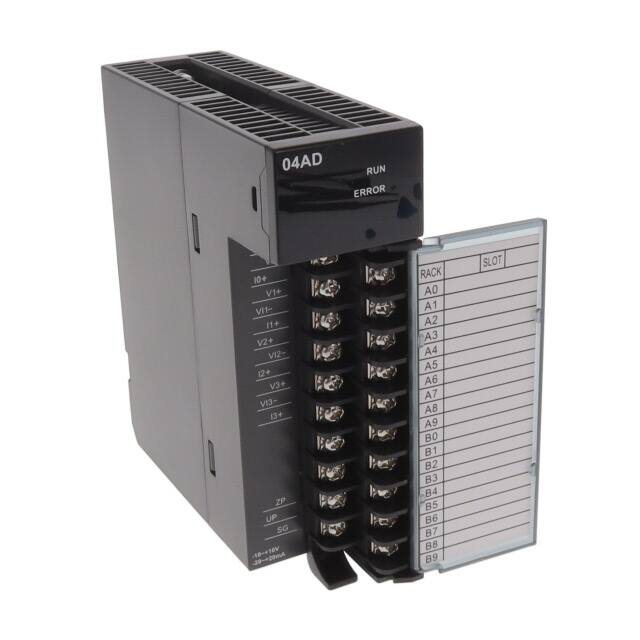

4 ANALOG INPUT MODULE V+0/4-20mA
SKU: AH04AD-5A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Modules for analog input in the AH500 PLC series:
High-level applications can benefit from automation options offered by the new AH Series PLC. System solutions for sophisticated process control are provided by the combination of highly integrated software, enhanced functionality, and a modularized hardware structure.
Apart from its diverse function blocks, outstanding cost-performance ratio, and wide array of extension modules, the AH PLC also offers remarkable system expansion capabilities, significantly lowering system expenses for an extensive array of uses.
Buy currently uses Select Automation shop pricing and checkout.
Key features:
Diagnose function.
Isolated signal design.
Supports interrupt function.
Module status LED display.
Supports hot-swapping function.
Conversion time: 150 ¼/channel.
Accuracy (at 25°C): Voltage mode: ±0.02% (full scale) / Current mode: ±0.05% (full scale).
POINTS (IN): 4.
POINTS (OUT): 0.
SIGNALS: 0/1-5V, 0-10V, 0/4-20mA.
TERMINAL TYPE: JIS removable.
DESCRIPTION: Analog input module.
RESOLUTION: 16 bit.
