      4 ANALOG OUTPUT MODULE V+0/4-20mA

      SKU: AH04DA-5A

      Out of stock

      Availability: Out of Stock

      Short Description
      Modules for analogue output for the AH500 family of PLCs: High-level applications can benefit from automation options offered by the new AH Series PLC. System solutions for sophisticated process control are provided by the combination of highly integrated software, enhanced functionality, and a modularized hardware structure. Apart from its diverse function blocks, outstanding cost-performance ratio, and wide array of extension modules, the AH PLC also offers remarkable system expansion capabilities, significantly lowering system expenses for an extensive array of uses.

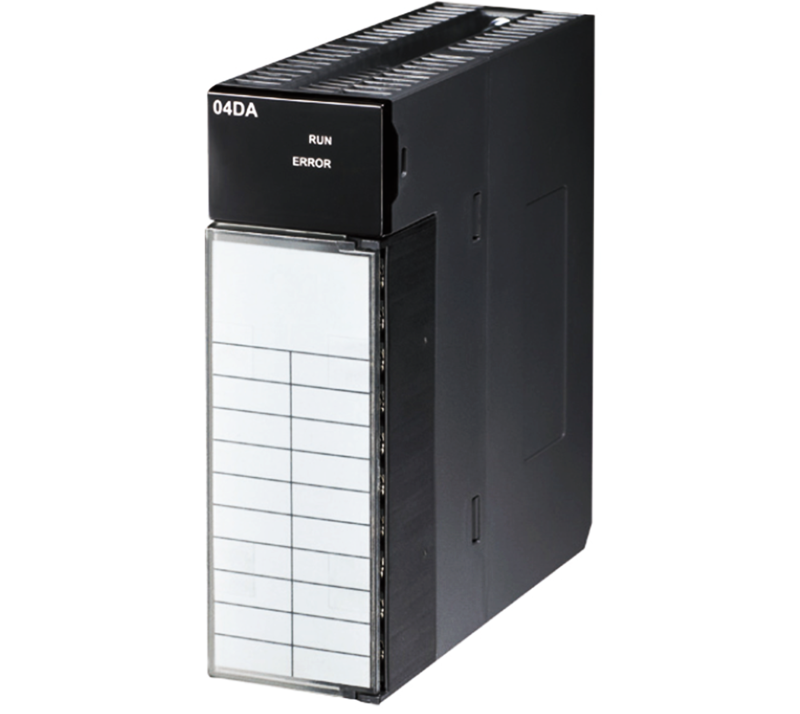

      AH04DA-5A
      Alternative image 1
      Key Features: Examine the function. Design of isolated signals. Supports the function of an interrupt. LED display for module status. Facilitates the hot-swapping feature. Time of conversion: 150 µ/channel. Keeps the last value when the CPU switches off. Precision (at 25°C): Full scale voltage mode is ±0.05%, whereas full scale current mode is ±0.1%. Specifications: POINTS (IN): 0 POINTS (OUT): 4 SIGNALS: 0/1-5V, 0-10V, 0/4-20mA TERMINAL TYPE: JIS removable DESCRIPTION: Analog output module RESOLUTION: 16 bits
