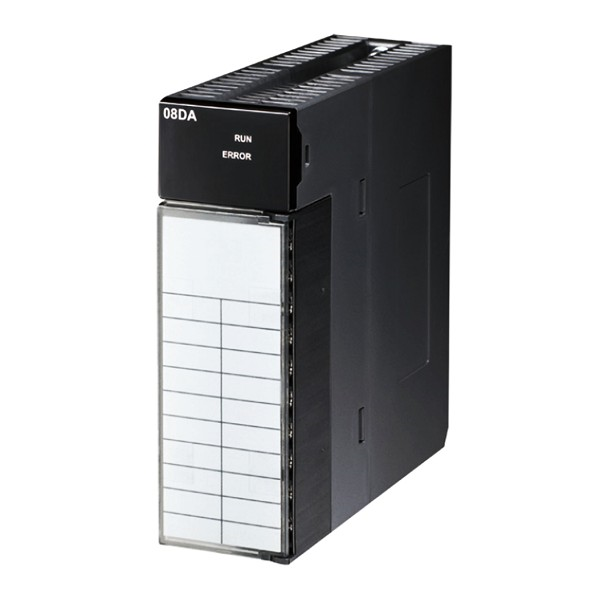

8 ANALOG OUTP MODULE 0/4-20mA
SKU: AH08DA-5C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Modules for analogue output for the AH500 family of PLCs:
High-level applications can benefit from automation options offered by the new AH Series PLC.
System solutions for sophisticated process control are provided by the combination of highly integrated software, enhanced functionality, and a modularized hardware structure.
Apart from its diverse function blocks, outstanding cost-performance ratio, and wide array of extension modules, the AH PLC also offers remarkable system expansion capabilities, significantly lowering system expenses for an extensive array of uses.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Examine the function.
Design of isolated signals.
Supports the function of an interrupt.
LED display for module status.
Facilitates the hot-swapping feature.
Time of conversion: 150 µ/channel.
Keeps the last value when the CPU switches off.
Precision (at 25°C): Full scale voltage mode is ±0.05%, whereas full scale current mode is ±0.1%.
Specifications:
POINTS (IN): 0.
POINTS (OUT): 8.
SIGNALS: 0/4-20mA.
TERMINAL TYPE: JIS removable.
DESCRIPTION: Analog output module.
RESOLUTION: 16 bit.
