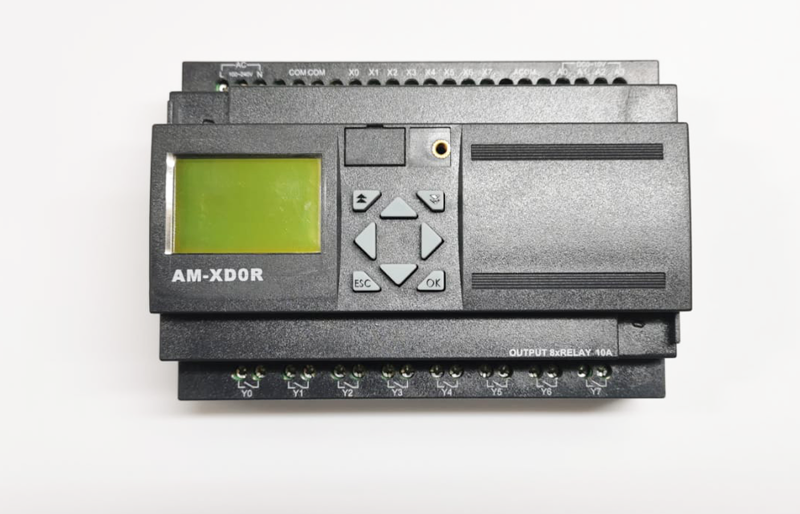

AM-XD0R, 100~240VAC
SKU: AM-XD0R
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
AM Series:
LD System
Reduces maintenance overhead.
Password protection
153 integrated functions
Linking of 8000 steps is possible.
Eight digital inputs, Eight digital outputs
Include Display
Integrated data latch
Up to 64 DI, 64 DO and 4 AI
Four 10-bit analog inputs
Free PC software “AM Edit”.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Inputs: 8
Analog inputs: 4(10-bit)
Input/supply voltage: 100/240 VAC.
Outputs (relays): 8
Continuous current: 10 A for resistive load, 3 A for inductive load
Integrated time switches/reserve power: Yes/type 128h
Operation temperature: -10°C to +55°C
Storage temperature: -20°C to + 70°CV
Degree of protection: IP 20
Linking of step: 8000
LCM: Yes
Input operating frequency: 5000 Hz.
Interface: RS-232/485/422
Installation: DIN rail or wall mounting
