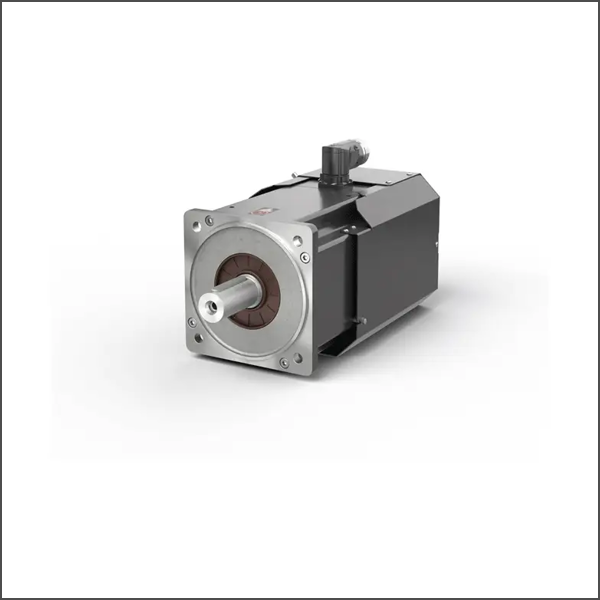

AM8073-0P1B Servomotor 104 Nm (M0), F7 (194 mm)
SKU: AM8073-0P1B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Motor type: permanent magnet-excited three-phase synchronous motor
Nominal voltage: 100…480 V AC
Standstill torque: 104 Nm
Rated torque: 83.7 Nm
Peak torque: 275 Nm
Rated speed: 1000 min-1
Rated power: 8.8 kW
Standstill current: 19.8 A
Peak current: 51.3 A
Torque constant: 5.25 Nm/A
Rotor moment of inertia: 135 kgcm²
Motor feedback: OCT, 18 bit, OCT, 24 bit, SIL 2-capable, resolver, Hiperface, single-turn absolute encoder, multi-turn absolute encoder
Cooling: external axial ventilation
Connection technology: M40 speedtec® plug
Ambient temperature (operation): +5…+40 °C
Approvals/markings: CE, cURus in preparation, EAC
Buy currently uses Select Automation shop pricing and checkout.
The AM8073 standard servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding and is in the range of 70.0…104 Nm. It is available with the OCT feedback system (absolute encoder). The standard servomotor with flange code F7 (194 mm) and motor length 3 has a shaft diameter b = 38 k6 and a free shaft end of d = 80 mm.
