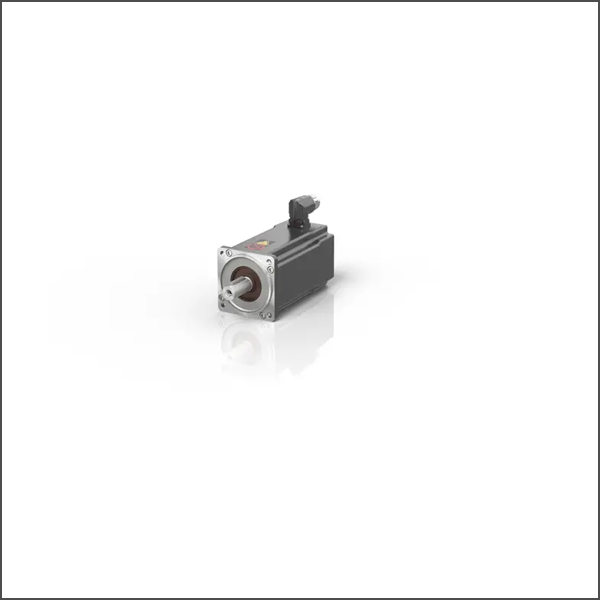

AM8542-4F01 Servomotor with increased moment of inertia 4.10 Nm (M0), F4 (87 mm)
SKU: AM8542-4F01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Motor type: permanent magnet-excited three-phase synchronous motor
Nominal voltage: 100…480 V AC
Standstill torque: 4.10 Nm
Rated torque: 3.70 Nm
Peak torque: 18.5 Nm
Rated speed: 5000 min-1
Rated power: 1.94 kW
Standstill current: 4.10 A
Peak current: 22.7 A
Torque constant: 1.00 Nm/A
Rotor moment of inertia: 5.51 kgcm²
Motor feedback: OCT, 18 bit, OCT, 24 bit, SIL 2-capable, resolver, single-turn absolute encoder, multi-turn absolute encoder
Cooling: convection
Connection technology: M23 speedtec® plug
Ambient temperature (operation): +5…+40 °C
Approvals/markings: CE, cURus, EAC
Buy currently uses Select Automation shop pricing and checkout.
The AM8542 high-inertia servomotor is suitable for drive solutions with increased moment of inertia to ensure synchronism and optimal ratio of load/motor inertia in the 100…480 V AC voltage range. The standstill torque of the motor is 4.10 Nm. It is available with the OCT feedback system (absolute encoder). The high-inertia servomotor with flange code F4 (87 mm) and motor length 2 has a shaft diameter b = 19 k6 and a free shaft end of d = 40 mm.
