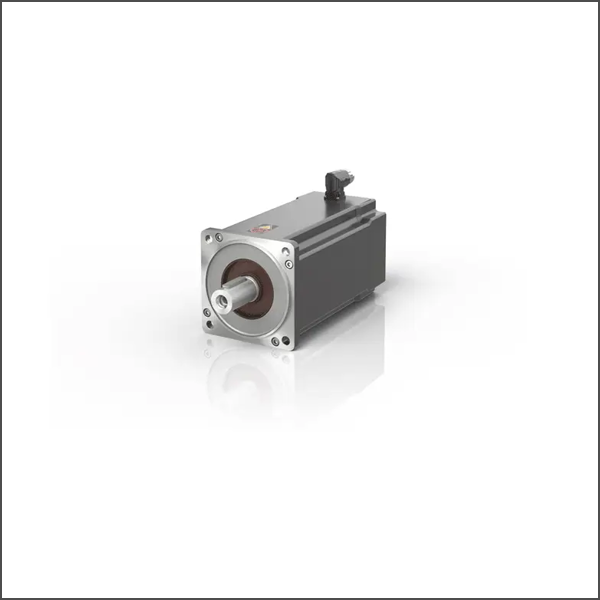

AM8562-1J01 Servomotor with increased moment of inertia 21.1 Nm (M0), F6 (142 mm)
SKU: AM8562-1J01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Motor type: permanent magnet-excited three-phase synchronous motor
Nominal voltage: 100…480 V AC
Standstill torque: 21.1 Nm
Rated torque: 18.5 Nm
Peak torque: 74.2 Nm
Rated speed: 1500 min-1
Rated power: 2.91 kW
Standstill current: 6.20 A
Peak current: 27.0 A
Torque constant: 3.39 Nm/A
Rotor moment of inertia: 57.1 kgcm²
Motor feedback: OCT, 18 bit, OCT, 24 bit, SIL 2-capable, resolver, Hiperface, single-turn absolute encoder, multi-turn absolute encoder
Cooling: convection
Connection technology: M23 speedtec® plug
Ambient temperature (operation): +5…+40 °C
Approvals/markings: CE, cURus, EAC
Buy currently uses Select Automation shop pricing and checkout.
The AM8562 high-inertia servomotor is suitable for drive solutions with increased moment of inertia to ensure synchronism and optimal ratio of load/motor inertia in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding and is in the range of 21.1…29.9 Nm. It is available with the OCT feedback system (absolute encoder). The high-inertia servomotor with flange code F6 (142 mm) and motor length 2 has a shaft diameter b = 32 k6 and a free shaft end of d = 58 mm.
