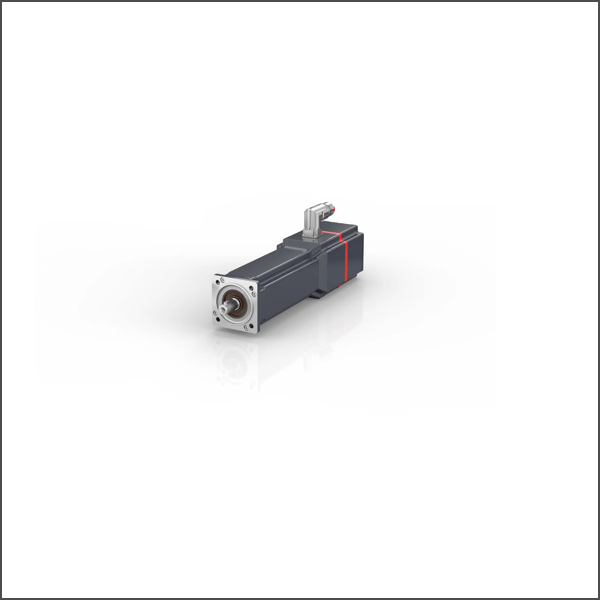

Distributed servo drive AMP8033-F020

Motor type; permanent magnet-excited three-phase synchronous motor with integrated servo drive Nominal voltage; 0…848 V DC Standstill torque; 3.15 Nm Rated torque; 2.95 Nm Peak torque; 17.2 Nm Rated speed; 3000 min-1 Rated power; 0.93 kW Rotor moment of inertia; 1.23 kgcm² Motor feedback; multi-turn absolute encoder System bus; EtherCAT Drive profile; CiA402 according to IEC 61800-7-201 (CoE) Connection technology; ECP B23 plug Realization STO; by local TwinSAFE Logic or by FSoE Safe stop functions; Safe Torque Off (STO), Safe Stop 1 (SS1) Safety standard; EN ISO 13849-1; 2015 (Cat 4, PL e), EN 61508; 2010 (SIL 3) and EN 62061; 2005 + A1; 2013/A2; 2015 (SIL CL3) Ambient temperature (operation); +5…+40 °C Approvals/markings; CE, cULus, EAC, TÜV Süd Protection rating; IP54, IP65 (shaft seal) Design form; flange-mounted according to IM B5, IM V1, IM V3 Material; aluminium Coating/surface; dark grey powder coating, similar to RAL7016
