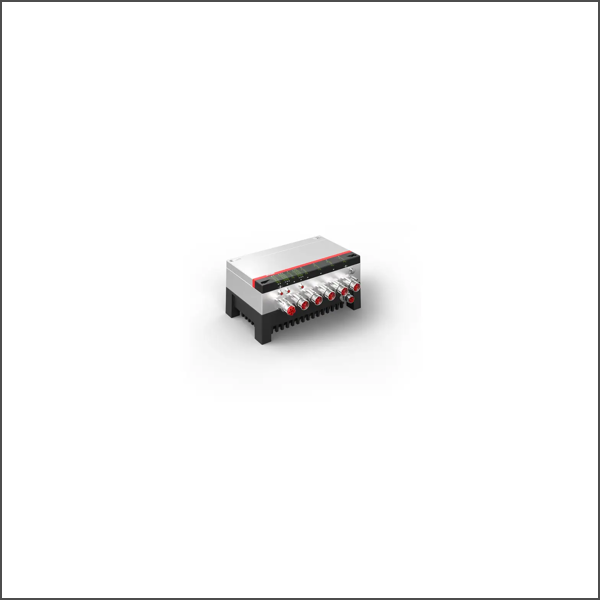

AMP8620-2005-0200 Power supply module with connector for external regen resistor for AMP8000
SKU: AMP8620-2005-0200
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Brake resistor: external
Channels: 5
EtherCAT P inputs: 1 x M8
EtherCAT P outputs: 2 x M8
Rated supply voltage: 3 x 400…480 V AC
DC link voltage: 430…848 V DC
DC link output current: ∑ max. 20 A DC
Continuous braking power: 1.6 kW
System bus: EtherCAT
Drive profile: CiA402 according to IEC 61800-7-201 (CoE)
Ambient temperature (operation): 0…+40 °C
Approvals/markings: CE, cULus, EAC
Buy currently uses Select Automation shop pricing and checkout.
The AMP8620 module is directly connected to the mains supply, which minimizes the footprint and the cabling effort for the entire machine.
