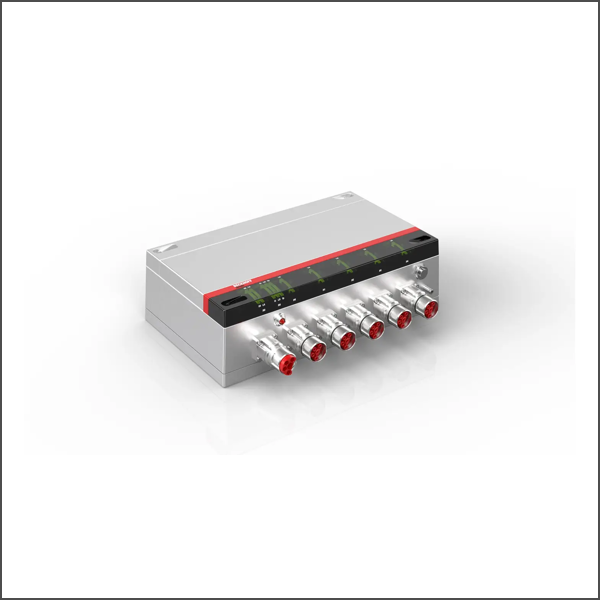

AMP8805-1000-0000 Distribution module for AMP8000
SKU: AMP8805-1000-0000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Channels: 5
EtherCAT P outputs: 1 x M8
DC link voltage: 430…848 V DC
DC link output current: ∑ max. 20 A DC
System bus: EtherCAT
Drive profile: CiA402 according to IEC 61800-7-201 (CoE)
Ambient temperature (operation): 0…+40 °C
Approvals/markings: CE, cULus, EAC
Buy currently uses Select Automation shop pricing and checkout.
The AMP8805 distribution module, the AMP8000 system can be cascaded using just one short cable in such a way that even complex machines and lines can be implemented in simple topologies.
