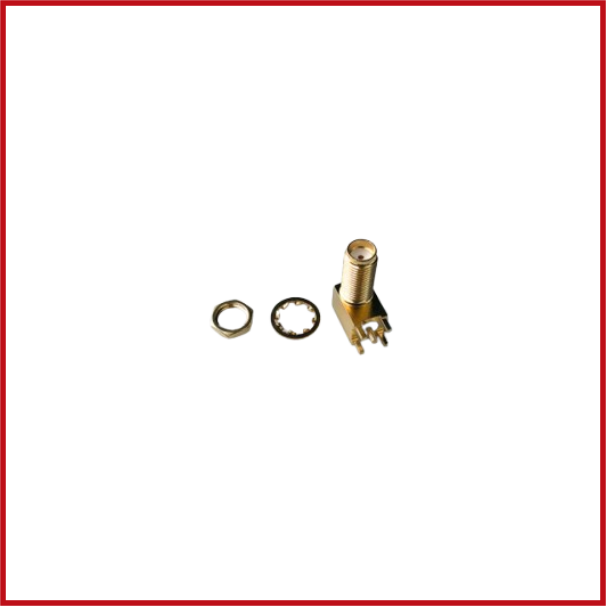

SMA-02-34-TGG SMA Right Angle Jack, PCB Mount
SKU: ANT-0002-H10
Sold by Select Automation
Final price R 54.40
R 47.30 excl. VAT
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SMA-02-34-TGG is an SMA Right Angle Jack designed for PCB (printed circuit board) mount applications.
This type of connector is commonly used in RF (radio frequency) applications due to its semi-precision, sub miniature design, and broadband performance with low reflection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Frequency Range: 0 to 18 GHz.
Impedance: 50 Ω.
Insertion Loss: 0.06 dB maximum at 6 GHz.
Contact Resistance: Center contact = 3.0 milliohms maximum, Outer contact = 2.0 milliohms maximum.
Insulation Resistance: 5000 megaohms minimum.
Temperature Range: -65°C to +165°C.
Material: Connector body is made of stainless steel or brass, with center contact made of brass or beryllium copper, and insulation made of Teflon.
Mounting Type: Right angle PCB mount.
