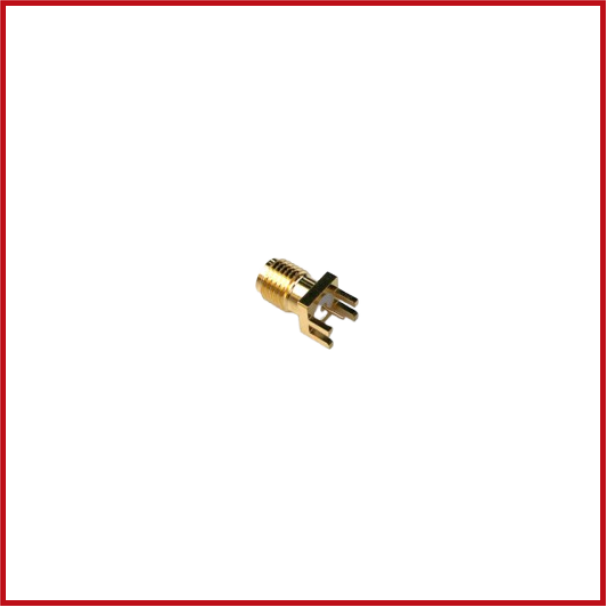

SMA-02-38-TGG SMA Vertical Jack, PCB Mount
SKU: ANT-0003-H10
Sold by Select Automation
Final price R 64.39
R 55.99 excl. VAT
Availability: In Stock (15 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SMA-02-38-TGG is an SMA Vertical Jack designed for PCB (printed circuit board) mount applications.
This type of connector is commonly used in RF (radio frequency) applications due to its semi-precision, sub miniature design, and broadband performance with low reflection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Frequency Range: 0 to 18 GHz.
Impedance: 50 Ω.
Insertion Loss: 0.06 dB maximum at 6 GHz.
Contact Resistance: Center contact = 3.0 milliohms maximum, Outer contact = 2.0 milliohms maximum.
Insulation Resistance: 5000 megaohms minimum.
Temperature Range: -65°C to +165°C.
Material: Connector body is made of stainless steel or brass, with center contact made of brass or beryllium copper, and insulation made of Teflon.
Mounting Type: Vertical PCB mount.
