ACM IPEX TO SMA Antenna ADPT 10CM
SKU: ANT-0005-H10
Sold by Select Automation
Final price R 66.61
R 57.92 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

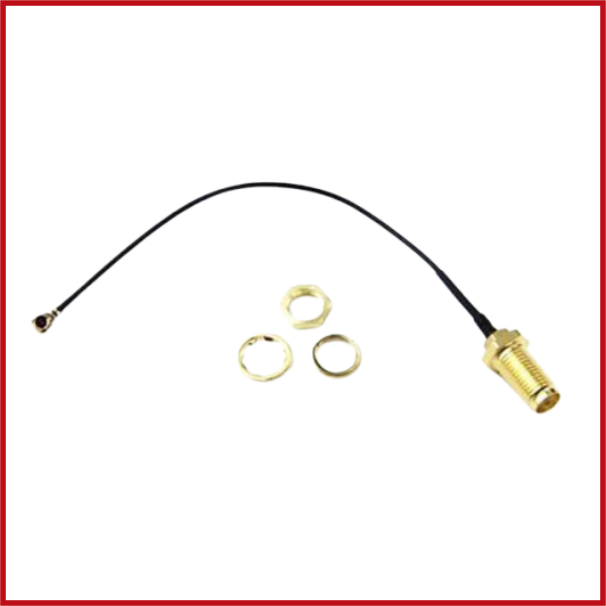

The ACM IPEX TO SMA Antenna Adapter 10CM is designed to convert a small IPEX (IPX) port to a standard SMA type antenna port.
This adapter is useful for devices that have an IPEX port, allowing them to connect to a wider range of SMA antennas.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Connector Type: IPEX male to SMA female.
Cable Length: 100 mm ±3 mm.
Total Length: 120 mm ±3 mm.
Frequency Range: 0-6 GHz.
Output Impedance: 50 Ω.
Cable Type: RG178 (Tinplating).
SMA Screw Length: 11 mm.
Screw Diameter: M6.
Working Temperature: -40°C to +85°C.
