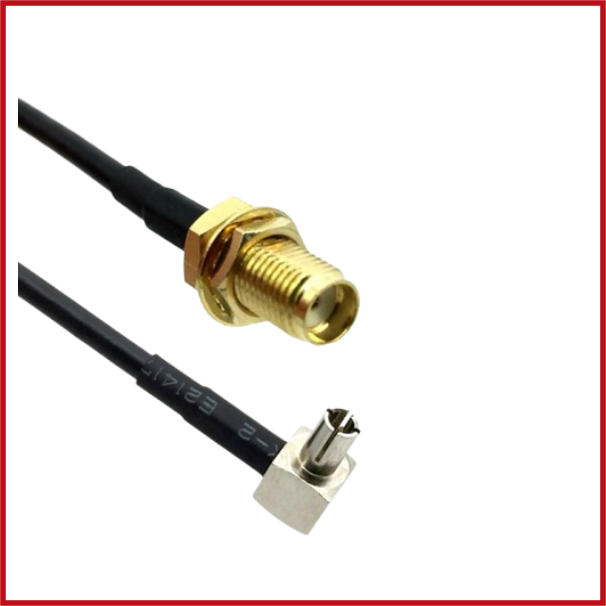

SMA to TS9 Pigtail Connector Converter
SKU: ANT-0011-H10
Sold by Select Automation
Final price R 242.51
R 210.88 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SMA to TS9 Pigtail Connector Converter is designed to convert an SMA connector to a TS9 connector, allowing compatibility between devices that use these different connector types.
This converter is particularly useful for connecting antennas to routers and other wireless devices.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Connector Type: SMA male to TS9 female.
Frequency Range: 0 to 18 GHz.
Impedance: 50 Ω.
Insertion Loss: ≤ 0.15 dB at 6 GHz.
Contact Resistance: Center contact ≤ 3 MΩ, Outer contact ≤ 2 MΩ.
Insulation Resistance: ≥ 5000 MΩ.
Temperature Range: -65°C to +165°C.
Material: Gold-plated copper for reliable performance.
Vibration Resistance: MIL-STD-202, Method 213.
Working Voltage: 335V max.
Withstand Voltage: 1000V rms.
