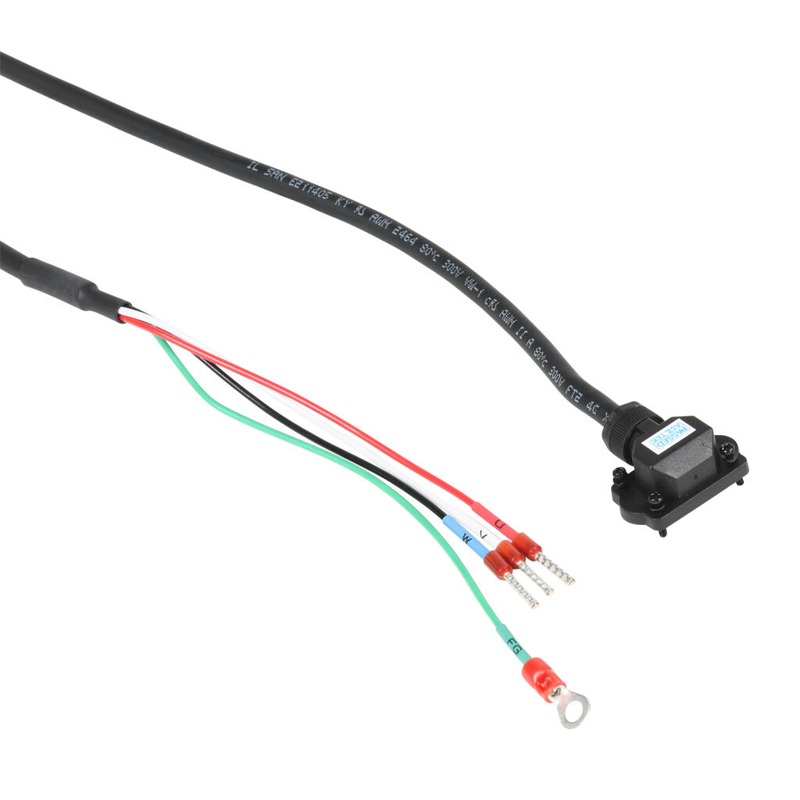

10m Power and Brake Cable 200V APM- FF & FG Motors 180 / 220 Frame Mil-spec Plug

Pricing available on request Specifications: Series: L7 Series 200V. Cable type: Power cable. Non-Moving type. Cable length: 10m. Motor Power and Brake Cables - 1.2 - 3.5kW 180 / 220 Frame 200V FF / FG motors. Motor side connector: Plug spec MS3108A24-10S (MS). Drive side connector: U, V, W Pin spec: F2512. Cable spec: 4C x 2.5SQ or 4C x 14AWG. FG Pin spec: 2.5 x 4 (Ring terminal). Brake power side connector: BK Pin spec 1.5 x 3 (Ring terminal). Cable spec: 2C x 0.75S or 2C x 18AWG.
