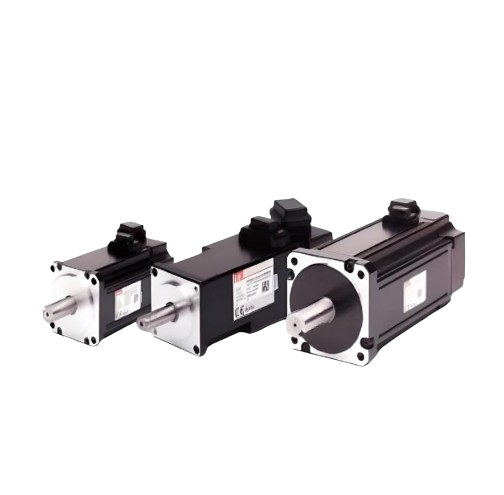

L7C Only FCL 750W 3000 RPM 80mm Flange
SKU: APMC-FCL08AYK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Ether CAT:
Provides real-time control with high speed, synchronization, and capability.
Application of 16-bit-bus results in faster communication.
Improved chip communication speed.
Increased speed of Ether CAT communication.
Supports FoE, EoE, and CoE.
Enhanced frequency of speed response (1 kHz).
Buy currently uses Select Automation shop pricing and checkout.
Features:
The variable switching frequency: 16/32/48 kHz.
Programming function with a module for single-axis position:
Pulse-input positioning control mode.
Supports indexing.
Without the need for a position control module, provides position control via I/O or HMI.
Specifications:
Model name: Servo motor.
Motor shaft: Flat shaft.
Flange size: 80mm flange.
Input power supply: 200VAC.
Motor capacity: 750W.
Rated speed: 3000rpm.
Encoder type: 17bit s-turn abs (magnetic).
Shape of shaft end: One side round key (standard).
In the case of 40, 60, 80 flange products, you can apply 200V drive only.
14mm Keyed Shaft, No Brake.
