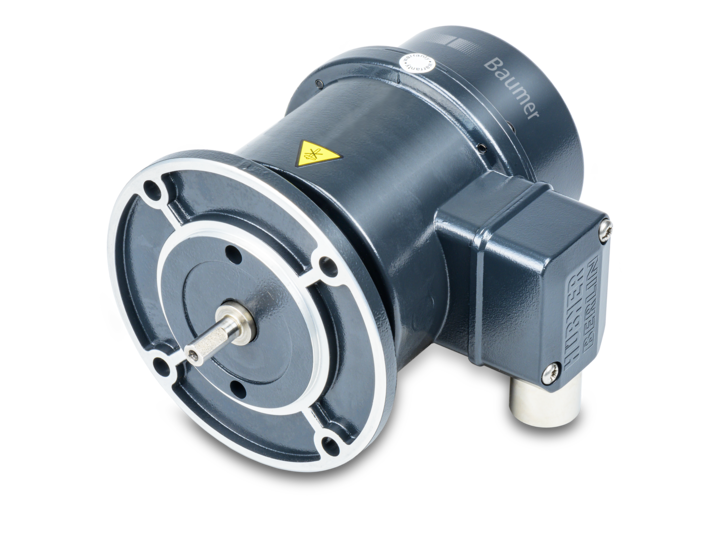

DC Tachogenerators, Open-circuit voltage 20 mV per rpm
SKU: APY20
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Industrial NEMA 12 housing with flange mount and solid shaft:
To directly replace "PY" or "BC" style tachogenerators.
Response time is low.
Open-circuit voltage ranges from 20 to 100 mV per rpm.
Very high shock resistance.
Patented Long-Life technology provides high signal quality.
Control can be used to recognize the rotational sensation.
CSA/C/US approved.
The second shaft end (B14) is optional.
Buy currently uses Select Automation shop pricing and checkout.
Technical data:
Off-load voltage U0 [mV/rpm]: 20.
Minimum load required depending on speed range [rpm]:
0-1000 RL [kΩ]: >0.3.
0-3000 RL [kΩ]: >1.2.
0-6000 RL [kΩ]: >3.3.
Maximum operating speed nmax [rpm]: 10000.
Armature resistance RA (20°C) [Ω]: 11.
Armature inductance LA [mH]: 23.
