Dual Relay Module T2
SKU: AQA-0026-S04
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

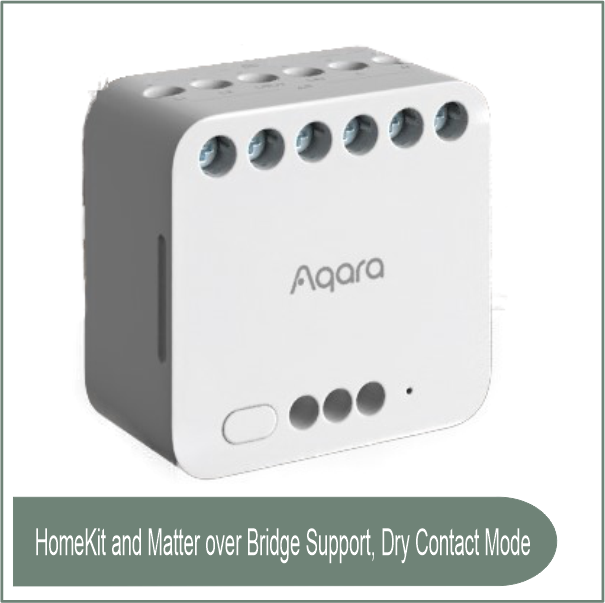

The Aqara Dual Relay Module T2 is a tiny Zigbee 3.0 smart relay module that adds intelligent control to current electrical devices without replacing traditional switches or equipment.
With two independent relay channels, it can control lighting, sockets, garage doors, gates, motors, ventilation systems, and other electrical loads while remaining compatible with existing wall switches.
It can operate in both wet and dry contact modes, making it suited for a wide range of household and commercial automation applications.
When connected to an Aqara Zigbee 3.0 Hub, the module allows for remote control, scheduling, automation scenes, and energy monitoring via the Aqara Home app.
It also supports Interlock Mode, which ensures the safe control of bidirectional motors like roller shutters and blinds by preventing both relay outputs from being active at the same time.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Dry Contact Mode: Versatile dry contact mode will let you integrate a whole variety of devices into your smart home.
HomeKit and Matter over Bridge Support: The T2 connects to Aqara Zigbee 3.0 hub supporting popular ecosystems: Matter, HomeKit, Google Home, Alexa, and more.
Interlock and Motor Control: Thanks to the Interlock mode, the T2 can also be used as a Roller Shade Switch. Let the morning sunshine gently wake you up and start your day.
Energy Monitoring and Power Memory: The T2 incorporates advanced energy monitoring and Power Memory for optimal energy control and uninterrupted operation.
Enhanced Safety and Security: Enjoy peace of mind with T2's smart safety features: overheat/overload protection and customizable power limit.
Wireless Switch Mode: Converting to wireless switch mode is supported. Thanks to it, the T2 will be able to make an existing wall switch a scene controller and even connect to wired sensors.
Multiple Installation Methods: The T2 can be installed near the light, behind the switch and even DIN rail mount, making it easy to install in electrical cabinets and other confined spaces.
Small Size and Versatile Design: The versatile design fits round EU wall boxes and other configurations like 86 mm and US-type, enabling usage as a light switch or even behind a wall outlet.
Specifications:
Channels: 2 independent channels (dual relay)
Max Load per Channel: 10A (total load not exceeding 2500W)
Maximum combined load: 16A
Power Input: 100-250V AC, 50/60Hz
Wireless Protocol: Zigbee 3.0
Operating Temperature: -10°C to 50°C (14°F to 122°F)
Operating Humidity: 5% - 95% RH (non-condensing)
Dimensions: Approx. 42.9 × 40 × 19.9 mm
Control Types: Supports momentary, toggle, and dual-rocker switches
Smart Ecosystem Compatibility: Apple HomeKit, Google Assistant, Amazon Alexa, and other Zigbee hubs.
Power Monitoring: Built-in energy monitoring for each channel
Safety: Overheat and overload protection, Surge protection
Compatibility:
Requires:
Aqara Hub: Required to connect the Dual Relay Module T2 to the Aqara ecosystem.
Compatible hubs include Aqara Hub M2, Hub E1, and Camera Hub G3.
Works with:
Aqara Zigbee Devices:Works with switches, buttons, and sensors for advanced automations.
Aqara Smart Sensors:Can be paired with motion, door/window, or temperature sensors to trigger connected appliances.
Aqara Smart Controls:Integrates with wireless switches or wall switches for remote control.
Smart Home Platforms:Compatible with Aqara Home, Apple HomeKit, Google Home, and Amazon Alexa for voice control and automation.
Third-Party Zigbee Devices:May work with other Zigbee 3.0 devices depending on the platform.
