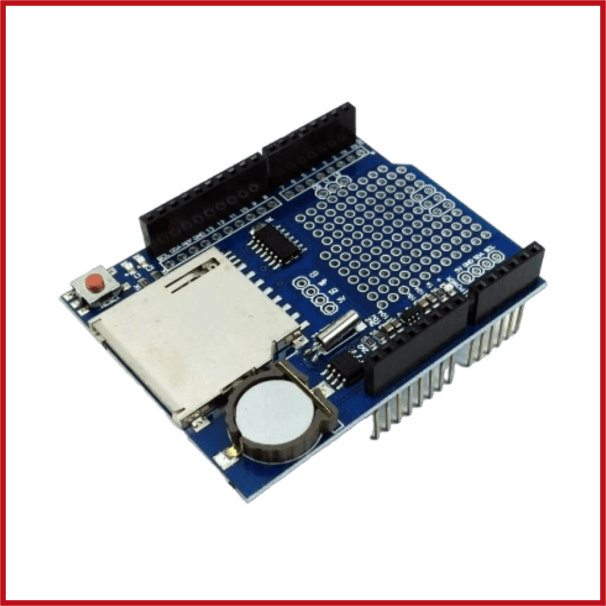

Data Logger Shield for Arduino
SKU: ARD-0003-G01
Price on request
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Arduino Data Logger Shield is an expansion board that adds data logging capabilities to Arduino boards.
It integrates an SD card interface for storing sensor and measurement data with a DS1307 real-time clock (RTC) for precise time and date stamping.
The shield also has a prototyping area for sensors and custom circuits, making it ideal for environmental monitoring, automation, IoT, and data collecting projects.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Arduino Data Logger Shield.
RTC: DS1307.
RTC Interface: I²C.
RTC Address: 0x68.
SD Card Interface: SPI.
SD Card Format: FAT16 / FAT32.
SD Card Type: Full-Size SD Card.
SD Card Logic Voltage: 3.3V.
Onboard Regulator: 3.3V.
Arduino Compatibility: Uno, Leonardo, Mega R3 and compatible boards.
Prototyping Area: Standard 2.54mm / 0.1-inch pitch.
Dimensions: 68.6 × 53.3 mm.
Applications: Data logging, sensor monitoring, environmental monitoring, temperature recording, IoT, automation, robotics and Arduino development.
This updated version is compatible with:
Compatible with the Arduino UNO or ATmega328 - 4 analog channels with a resolution of 10 bits, or 6 if the RTC is not being used.
Compatibility with Arduino Leonardo or ATmega32u4 - 12 analog channels with 10 bit resolution.
Arduino Mega or ATmega2560 compatible - 16 analog inputs (10-bit).
Six analog inputs (12-bit) compatible with the Arduino Zero or ATSAMD21.
Compatible with the Arduino Due - 12 analog inputs (12-bit).
