HC05 Bluetooth Module for Arduino
SKU: ARD-0007-G01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

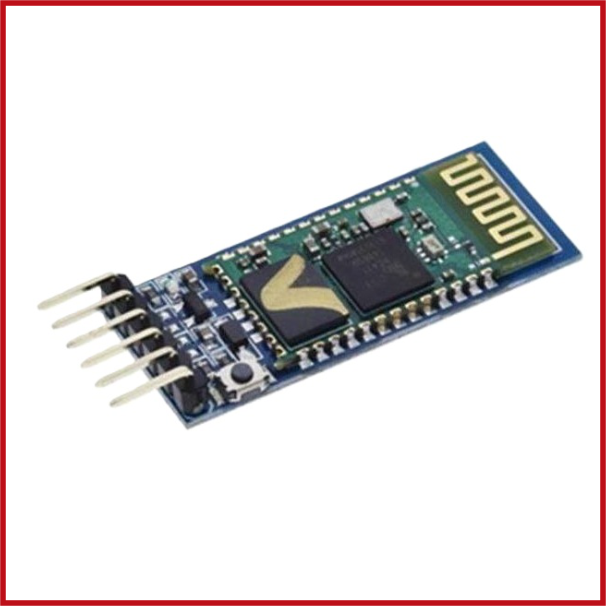

The HC-05 Bluetooth Module is a small wireless serial communication module that adds Bluetooth functionality to Arduino and other microcontroller applications.
It communicates with the host controller via a UART serial interface, using Bluetooth 2.0 + EDR technology.
The module can function as a Bluetooth master or slave and is ideal for wireless control, data transmission, robotics, automation, and embedded systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Bluetooth Serial Communication Module.
Bluetooth Version: 2.0 + EDR.
Bluetooth Profile: Serial Port Profile (SPP).
Operating Mode: Master / Slave.
Communication Interface: UART / TTL.
Operating Frequency: 2.4 GHz ISM Band.
Operating Voltage: 3.3–5 V DC on breakout boards.
Logic Level: 3.3 V.
Default Baud Rate: 9600 bps.
AT Command Mode Baud Rate: 38400 bps.
Communication Range: 10 m.
Antenna: Integrated PCB Antenna.
Configuration: AT Commands.
Interface Pins: VCC, GND, TXD, RXD, EN/KEY and STATE on 6-pin versions.
Compatible Platforms: Arduino, AVR, PIC, STM32 and other UART-compatible microcontrollers.
Applications: Wireless Arduino control, serial data transmission, robotics, automation, remote monitoring, IoT projects and DIY electronics.
