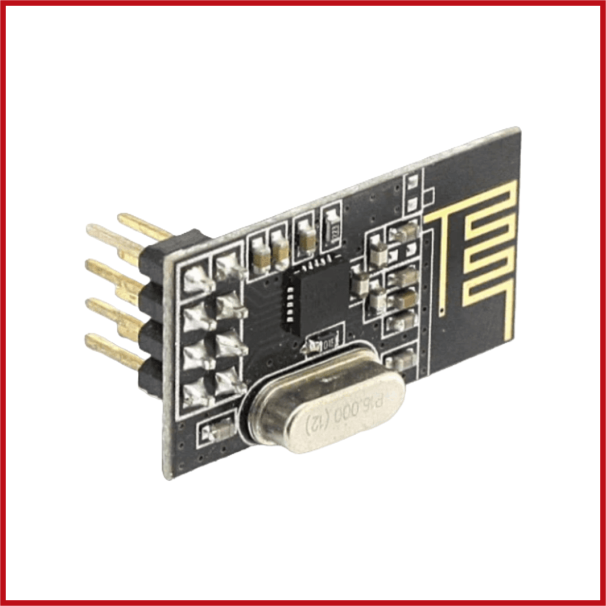

NRF24L01+ Transceiver Module
SKU: ARD-0008-G01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The NRF24L01+ Transceiver Module is a small 2.4 GHz wireless transceiver designed for short-range two-way data transfer between microcontrollers.
It employs Nordic Semiconductor's nRF24L01+ transceiver and communicates with the host microcontroller using an SPI interface.
The module enables packet-based communication via Enhanced ShockBurst™, making it ideal for Arduino wireless projects, remote controls, robotics, telemetry, and sensor networks.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: 2.4 GHz Wireless Transceiver Module.
IC: nRF24L01+.
Frequency Range: 2.400–2.4835 GHz.
ISM Band: 2.4 GHz.
Modulation: GFSK.
Air Data Rate: 250 kbps / 1 Mbps / 2 Mbps.
RF Output Power: 0 dBm / -6 dBm / -12 dBm / -18 dBm.
Receiver Sensitivity: Down to -94 dBm at 250 kbps.
Communication Interface: SPI.
SPI Speed: Up to 8 Mbps.
Supply Voltage: 1.9–3.6 V DC at the nRF24L01+ IC level.
Typical Module Supply: 3.3 V DC.
Channels: 126 RF channels.
Data Pipes: 6.
Payload Size: 1–32 bytes.
Protocol: Enhanced ShockBurst™.
Antenna: Integrated PCB antenna on standard modules.
Compatible Platforms: Arduino, Raspberry Pi, ESP32, STM32 and other microcontrollers with SPI.
Applications: Wireless sensor networks, remote controls, robotics, RC projects, telemetry, home automation, Arduino projects and DIY electronics.
