Sensor-Arduino Mini Reed
SKU: ARD-0012-G01
Price on request
Availability: In Stock (11 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

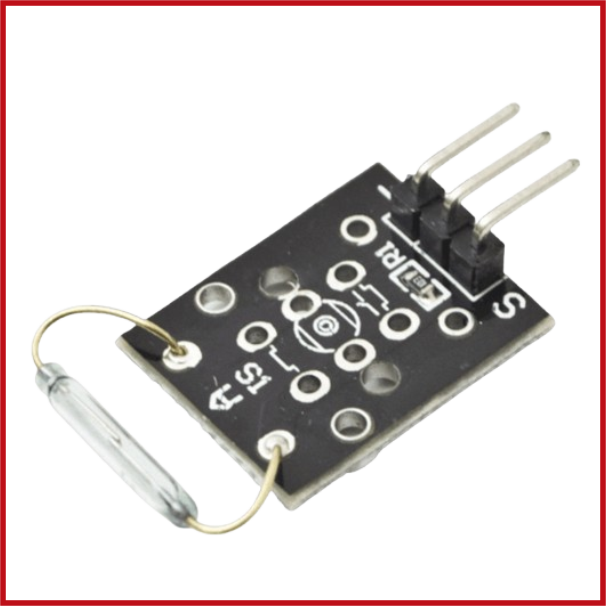

The KY-021 Mini Reed Switch Sensor Module is a small magnetic switch module intended for Arduino and other microcontroller projects.
It employs a reed switch that changes state when a magnetic field is brought near it.
The module is frequently used to detect door or window openings, magnetic proximity, position, and movement.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Mini Reed Switch Sensor Module.
Sensor Type: Magnetic Reed Switch.
Switch Type: Normally Open (NO).
Output Type: Digital.
Operating Principle: Magnetic field activated mechanical switch.
Operating Voltage: 3.3–5 V DC.
Interface: VCC / GND / Signal.
Number of Pins: 3.
Switch State: Open when no magnetic field is present; closes when a suitable magnet is detected.
Detection Method: Magnetic proximity.
Module Type: PCB Sensor Module.
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi, STM32 and other microcontroller platforms.
Applications: Door and window sensors, magnetic proximity detection, position sensing, limit detection, security systems, robotics, automation, Arduino projects and DIY electronics.
