Sensor-Arduino PCB Mounted Push Button KY0004
SKU: ARD-0016-G01
Price on request
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

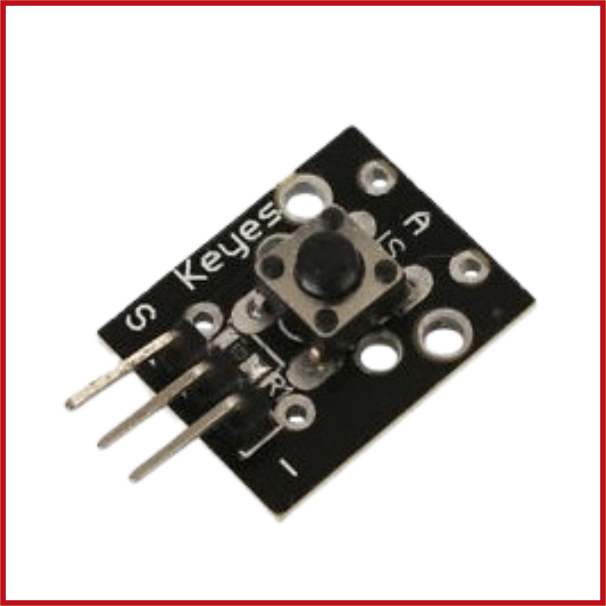

The KY-004 PCB Mounted Push Button Module is a basic digital switch module intended for use with Arduino and other microcontroller development boards.
It has a tactile momentary push button built on a small PCB, which allows a controller to detect when the button is pressed.
The module features an inbuilt resistor and three connections: VCC, GND, and Signal (S).
When you press the button, the signal state changes, allowing it to be utilized as a digital input to control LEDs, relays, motors, menus, counters, alarms, and other electronic operations.
It operates between 3.3 V and 5 V, making it appropriate for a variety of development platforms.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Mounted Push Button Module.
Switch Type: Tactile Momentary Push Button.
Output Type: Digital.
Interface: VCC / GND / Signal.
Number of Pins: 3.
Rated Current: 50 mA.
Rated Voltage: 12 V DC.
Operating Voltage: 3.3–5 V DC for the module.
Operating Temperature: -25°C to 105°C.
Electrical Life: 100,000 cycles.
Operating Force: 180/230 ±20 gf.
Board Dimensions: 18.5 × 15 mm.
Module Dimensions: 18 × 15 × 6 mm.
Onboard Component: Resistor.
Connector Pitch: 2.54 mm.
Compatible Platforms: Arduino, ESP32, Raspberry Pi and other microcontroller platforms.
Applications: Digital input, user controls, menu selection, reset switches, trigger inputs, robotics, automation, Arduino projects and DIY electronics.
