Sensor-Arduino Sound Sensor (Big)
SKU: ARD-0020-G01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

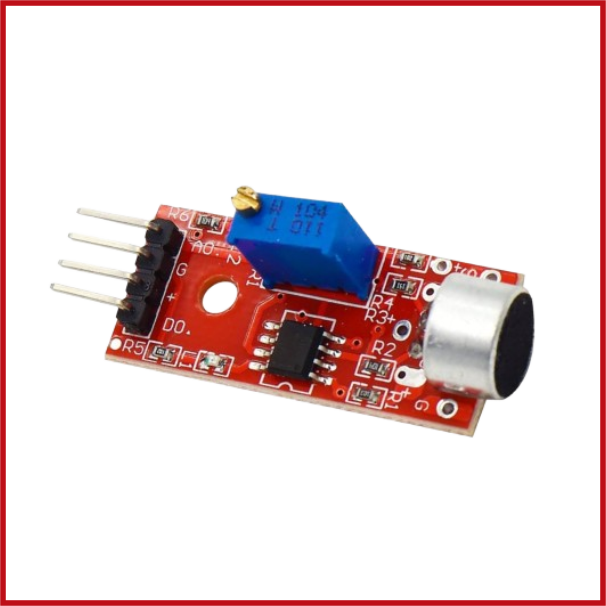

The KY-037 "Big Sound" Sensor Module detects sounds using a microphone and is intended for use with Arduino and other microcontrollers.
It detects sound using an electret condenser microphone and generates both analogue and digital signals.
The onboard potentiometer allows you to change the digital detection threshold, making it ideal for clap detection, sound-triggered switches, and noise detection applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Sound / Microphone Sensor Module.
Sensor Type: Electret Condenser Microphone.
Microphone: CMA-6542PF.
Output Type: Analog + Digital.
Analog Output: AO.
Digital Output: DO.
Comparator IC: LM393.
Operating Voltage: 3.3–5.5 V DC.
Microphone Sensitivity: -42 ±3 dB @ 94 dB SPL.
Frequency Range: 20 Hz–20 kHz.
Directivity: Omnidirectional.
Signal-to-Noise Ratio: 60 dBA.
Sensitivity Adjustment: Onboard 3296W potentiometer.
Interface: AO / GND / VCC / DO.
Number of Pins: 4.
Digital Threshold: Adjustable.
Indicators: Power LED + trigger LED.
Mounting: PCB mounting holes.
Board Dimensions: 15 × 36 mm.
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi, STM32 and other microcontroller platforms.
Applications: Sound detection, clap switches, noise monitoring, sound-activated lighting, alarms, robotics, automation, Arduino projects and DIY electronics.
