Sensor-Arduino Linear Hall
SKU: ARD-0021-G01
Price on request
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

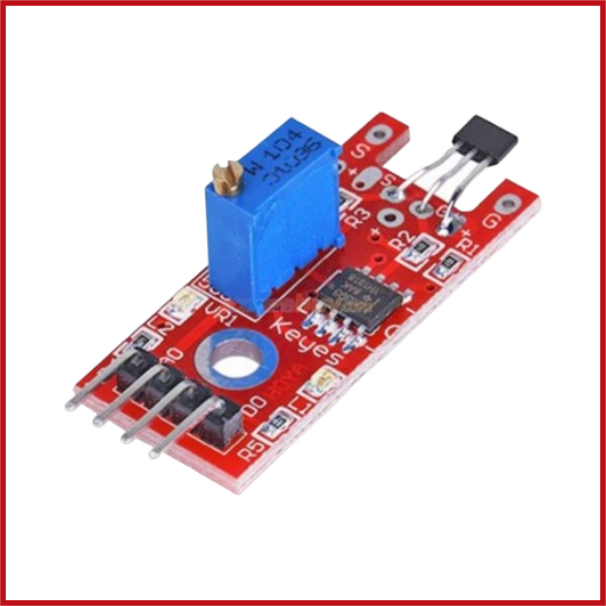

The KY-024 Linear Hall Magnetic Sensor Module detects magnetic fields and measures their strength.
It uses a linear Hall-effect sensor and has both analogue and digital outputs, making it suitable for magnetic proximity, position, and movement detection.
The digital detection threshold can be modified with the inbuilt potentiometer.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Linear Hall Magnetic Sensor Module.
Sensor Type: Linear Hall-Effect Sensor.
Detection Method: Magnetic Field Detection.
Output Type: Analog + Digital.
Analog Output: AO.
Digital Output: DO.
Operating Voltage: 3.3–5 V DC.
Interface: VCC / GND / AO / DO.
Number of Pins: 4.
Digital Sensitivity: Adjustable.
Adjustment: Onboard potentiometer.
Comparator: LM393.
Detection: Magnetic field strength and changes.
Sensor Principle: Hall Effect.
Indicator: Onboard LED.
Module Type: PCB Sensor Module.
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi, STM32 and other microcontroller platforms.
Applications: Magnetic proximity detection, position sensing, limit detection, rotational sensing, speed measurement, robotics, automation, Arduino projects and DIY electronics.
