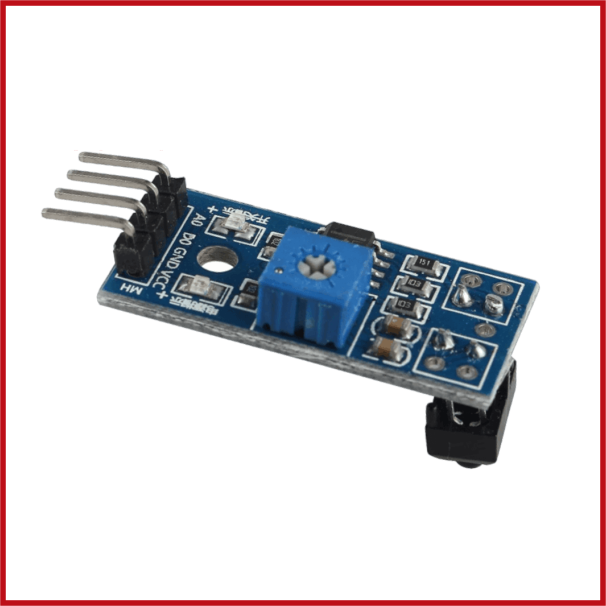

Arduino Relay TCRT5000 infrared reflective line tracking module
SKU: ARD-0025-G01
Price on request
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Arduino TCRT5000 Infrared Reflective Line Tracking Module is a tiny optical sensor that detects lines, edges, and changes in surface reflectivity.
It detects light and dark surfaces using an infrared LED emitter and a TCRT5000 reflecting infrared sensor.
The module produces a digital output and is widely utilized in Arduino line-following robots, obstacle detection, object sensing, and automated positioning applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Sensor: TCRT5000 Infrared Reflective Sensor.
Detection Method: Infrared Reflection.
Operating Voltage: 3.3–5 V DC.
Output Type: Digital.
Comparator: LM393.
Detection Distance: 1–8 mm, depending on surface and adjustment.
Sensitivity: Adjustable.
Infrared Wavelength: 950 nm.
Response Time: Fast response.
Status Indicators: Power / Output LEDs.
Interface: VCC / GND / OUT.
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi, STM32 and other microcontroller platforms.
Applications: Line-following robots, surface detection, edge detection, object detection, reflective sensing, automatic positioning, robotics and Arduino projects.
