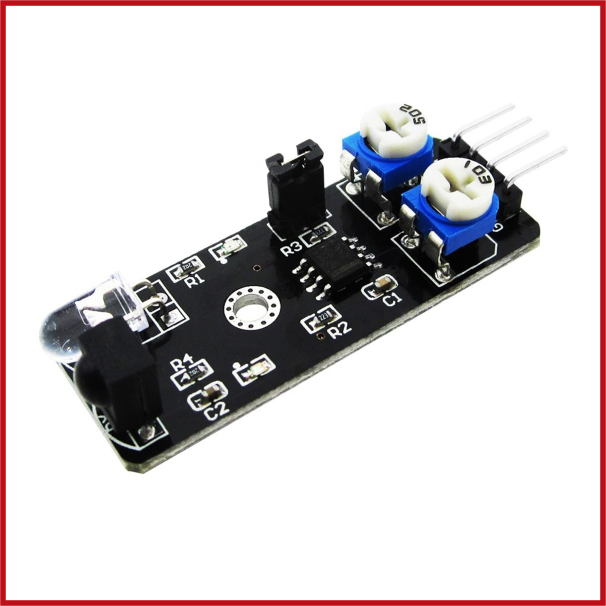

Obstacle Avoidance Sensor Module
SKU: ARD-0026-G01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Obstacle Avoidance Sensor Module is a small infrared (IR) proximity sensor that can detect objects in front of it without physical touch.
It detects reflected IR light from nearby objects using an infrared transmitter and receiver, and when an obstacle is found, it sends a digital signal.
The detecting threshold can be modified with the onboard potentiometer.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Infrared Obstacle Avoidance Sensor Module.
Sensor Type: Active IR Reflective Sensor.
Operating Voltage: 3.3–5 V DC.
Operating Current: 20 mA.
Detection Range: 2–30 cm, adjustable.
Detection Angle: 35°.
Output Type: Digital.
Output Logic: Active LOW – LOW when an obstacle is detected.
Comparator: LM393.
IR Wavelength: 940 nm.
Interface: VCC / GND / OUT.
Sensitivity Adjustment: Onboard potentiometer.
Indicator: Onboard LED.
Mounting: PCB mounting holes.
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi, STM32 and other microcontroller platforms.
Applications: Obstacle avoidance, robot cars, proximity detection, object counting, automation, line/edge detection, Arduino projects and DIY robotics.
