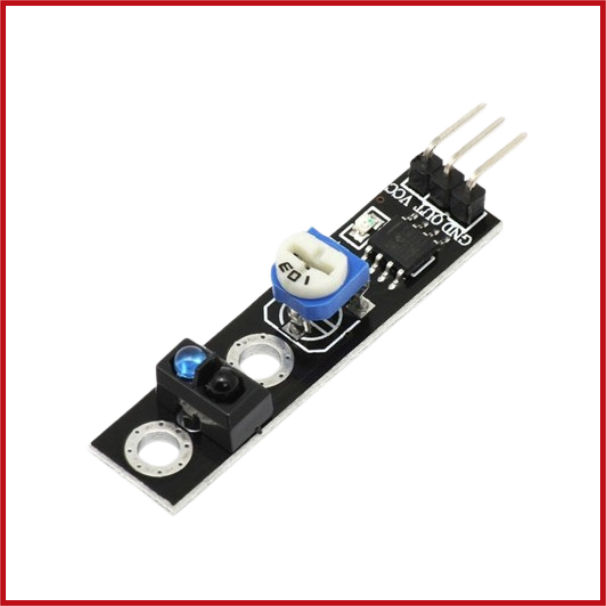

Tracking Sensor Line Following Module for Arduino
SKU: ARD-0027-G01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The KY-033 Tracking Sensor Module is an infrared reflecting sensor specifically developed for line-following robots and Arduino projects.
It detects variations in surface reflectivity using an infrared transmitter and receiver.
The module can distinguish between a dark line and a lighter background, generating a digital signal that a microcontroller can use to control the direction of a robot.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Line Tracking Sensor Module.
Sensor Type: Infrared Reflective Sensor.
Detection Method: Infrared reflection.
Output Type: Digital.
Operating Voltage: 3.3–5 V DC.
Interface: VCC / GND / Signal.
Number of Pins: 3.
Detection Target: Contrasting surfaces / lines.
Typical Detection Distance: 1–2 cm, depending on surface and module adjustment.
Sensitivity Adjustment: Onboard potentiometer.
Infrared LED: Integrated.
Indicator: Onboard LED.
Module Type: PCB Sensor Module.
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi, STM32 and other microcontroller platforms.
Applications: Line-following robots, track detection, surface detection, robotic navigation, automation, Arduino projects and DIY electronics.
