Sensor-Arduino Two Colour 5mm
SKU: ARD-0035-G01
Price on request
Availability: In Stock (11 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

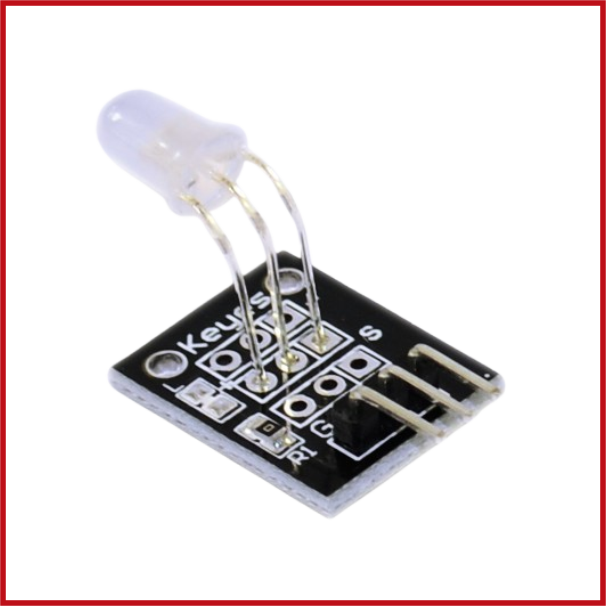

The KY-029 Two-Colour LED Module is a small red/green bi-colour LED module developed for Arduino and other microcontroller projects.
It employs a common-cathode LED, allowing the red and green parts to be operated independently.
Different colours and brightness levels can be achieved by regulating the two colours separately or utilizing PWM.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Two-Colour LED Module.
LED Type: Bi-Colour LED.
LED Colours: Red + Green.
LED Diameter: 5 mm.
Configuration: Common Cathode.
Output: Red / Green light.
Operating Voltage: 2.0–2.6 V.
Forward Voltage – Green: 2.3–2.6 V.
Forward Voltage – Red: 1.9–2.2 V.
Forward Current: 20 mA.
Wavelength – Green: 571 nm.
Wavelength – Red: 625 nm.
Luminous Intensity – Green: 20–40 mcd.
Luminous Intensity – Red: 60–80 mcd.
Interface: 3-pin.
Control: Digital / PWM.
Onboard Resistor: 0 Ω on common versions.
Module Type: PCB LED Module.
Compatible Platforms: Arduino, Raspberry Pi, Raspberry Pi Pico, Micro: Bit, ESP32 and other microcontroller platforms.
Applications: Status indicators, warning indicators, control panels, displays, robotics, Arduino projects and DIY electronics.
