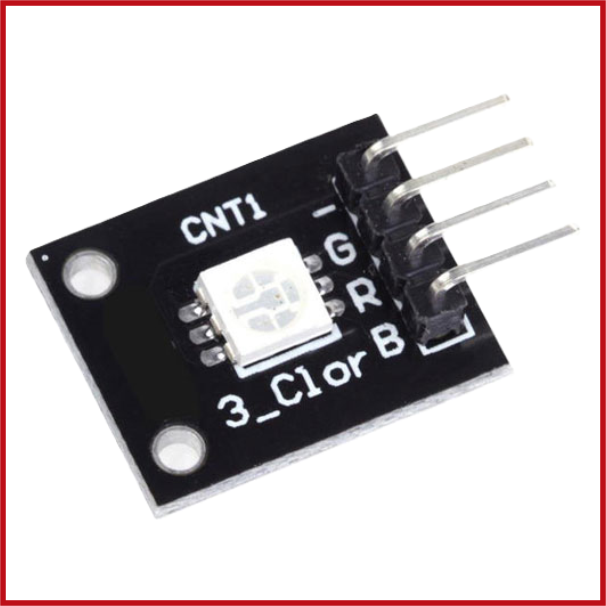

HKD KY-009 RGB SMD LED module
SKU: ARD-0037-G01
Price on request
Availability: In Stock (11 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The HKD KY-009 RGB SMD LED Module is a small full-colour LED module suited for Arduino and other microcontroller projects.
It has a 5050 RGB SMD LED with independent red, green, and blue channels.
Different colours and lighting effects can be created by regulating the three channels using PWM.
The module has a common-cathode layout and is ideal for indicators, displays, lighting effects, robotics, and DIY electronics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: RGB SMD LED Module.
LED Type: 5050 RGB SMD LED.
LED Colours: Red / Green / Blue.
Drive Mode: Common Cathode.
Operating Voltage: 5 V DC maximum.
Forward Voltage – Red: 1.8–2.4 V.
Forward Voltage – Green: 2.8–3.6 V.
Forward Voltage – Blue: 2.8–3.6 V.
Forward Current: 20 mA.
Interface: R / G / B / GND.
Number of Pins: 4.
Board Dimensions: 18.5 × 15 mm.
Operating Temperature: -25°C to +85°C.
Compatible Platforms: Arduino, Raspberry Pi, ESP32, ESP8266 and other microcontrollers.
Applications: RGB lighting, status indicators, colour displays, robotics, Arduino projects, IoT projects and DIY electronics.
