Arduino DS18B20 Temperature module
SKU: ARD-0038-G01
Price on request
Availability: In Stock (13 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

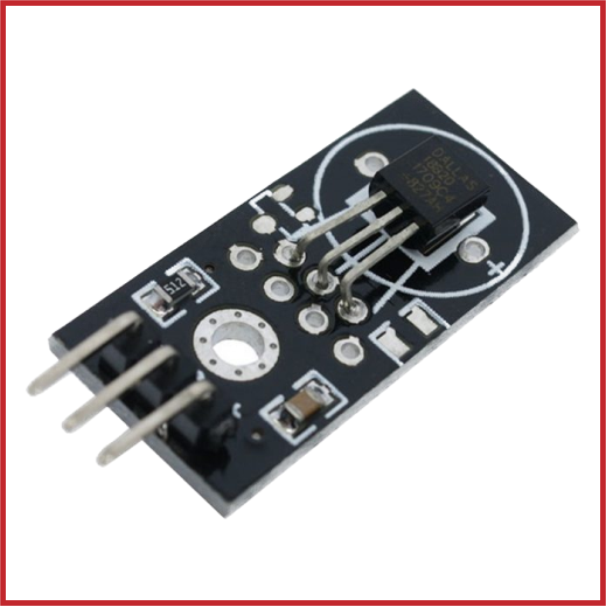

The Arduino DS18B20 Temperature Sensor Module is a small digital temperature measurement module made for Arduino and other microcontroller-based projects.
It employs the DS18B20 digital temperature sensor, which delivers precise temperature readings via a single-wire digital interface.
The sensor can handle numerous devices on the same communication channel and is ideal for temperature monitoring, automation, environmental sensing, and DIY electronics applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: DS18B20 Temperature Sensor Module.
Sensor Type: Digital Temperature Sensor.
Sensor IC: DS18B20.
Measurement Range: -55°C to +125°C.
Accuracy: ±0.5°C from -10°C to +85°C.
Resolution: 9–12 bit programmable.
Communication Protocol: 1-Wire.
Operating Voltage: 3.0–5.5 V DC.
Output Type: Digital.
Interface: 3-Pin (VCC / GND / DATA).
Pull-Up Resistor: Onboard.
Conversion Time: Up to 750 ms at 12-bit resolution.
Temperature Resolution: Up to 0.0625°C.
Power Supply: 3.0–5.5 V DC.
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi, STM32 and other 1-Wire compatible microcontrollers.
Module Type: Through-Hole PCB Module.
Applications: Temperature monitoring, environmental sensing, HVAC systems, industrial automation, smart-home systems, water-temperature monitoring, Arduino projects and DIY electronics.
