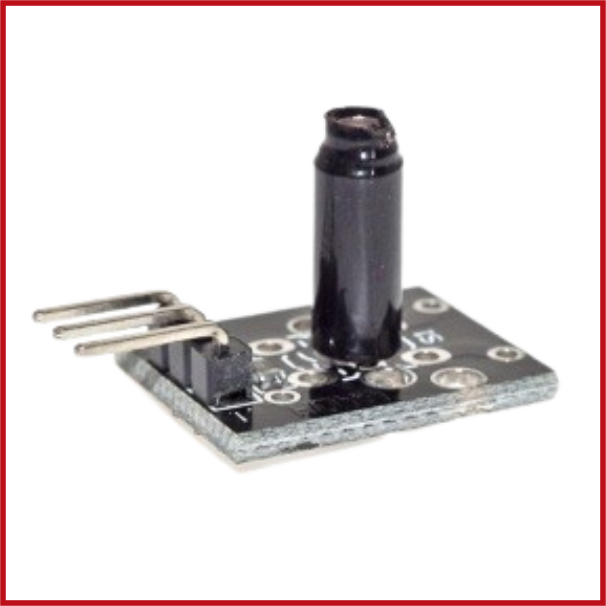

Sensor-Arduino Shock / rolling ball type tilt switch
SKU: ARD-0040-G01
Price on request
Availability: In Stock (19 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Arduino Sensor-Arduino Shock/Rolling Ball Type Tilt Switch is a straightforward and dependable tilt sensor for detecting changes in orientation or inclination.
It is widely used in projects that require determining whether an object has been tilted or shaken.
The tilt angle determines whether the rolling ball inside the sensor forms or breaks an electrical connection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Dimensions: 5.5 mm (0.22 inches) diameter & 13.5 mm (0.53 inches) long.
Maximum Operating Voltage (VCC): Up to 20V.
Maximum Operating Current (Imax): 30 mA.
Sensitivity Range: Movements of around 5 to 10 degrees.
Lifetime: 50,000+ cycles (switches).
Load Switching: Max 12VDC 50mA.
Built-in Resistor: 10 K Ohm resistor for pull-up or pull-down use.
