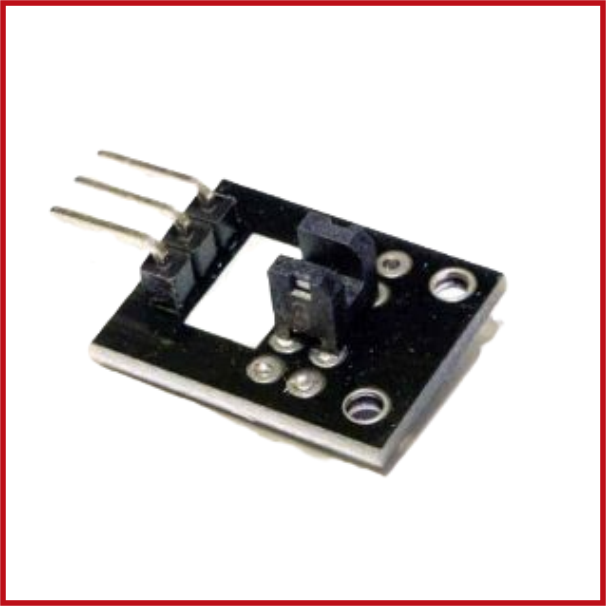

KY-010 Photo Interrupter module
SKU: ARD-0043-G01
Price on request
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The KY-010 Photo Interrupter Module is a small optical sensor used to detect the interruption of an infrared beam.
It detects when an item passes between an infrared emitter and receiver, generating a digital output that Arduino and other microcontroller platforms can read.
It is appropriate for item detection, counting, position sensing, speed measuring, and robotics applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Photo Interrupter / Optical Sensor Module.
Sensor Type: Infrared Photo Interrupter.
Detection Method: Infrared Beam Interruption.
Operating Voltage: 3.3–5 V DC.
Output Type: Digital.
Interface: VCC / GND / Signal.
Number of Pins: 3.
Output Logic: Digital HIGH/LOW.
Detection: Object interruption of infrared beam.
Indicator: Onboard LED.
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi, STM32 and other microcontroller platforms.
Applications: Object detection, object counting, position detection, rotational speed measurement, encoder applications, robotics, automation, Arduino projects and DIY electronics.
