Hall Effect Magnetic Module Sensor Ky 0003
SKU: ARD-0044-G01
Price on request
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

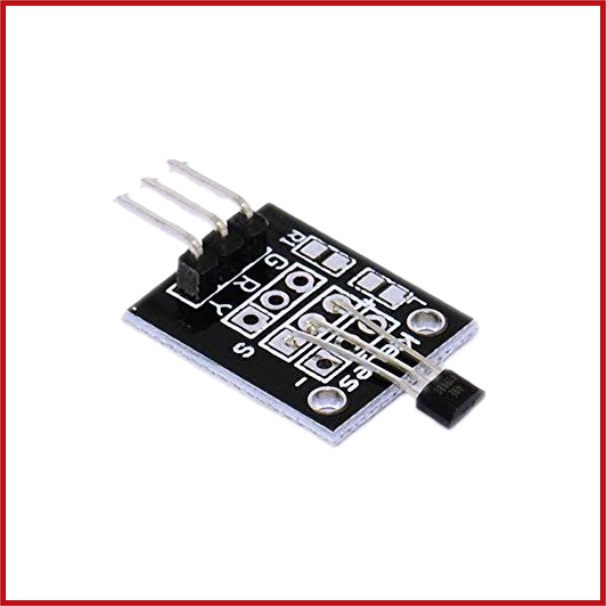

The KY-003 Hall Effect Magnetic Sensor Module is a tiny digital magnetic switch that detects the presence of a magnetic field.
It employs an A3144 Hall-effect sensor and outputs a digital signal that changes state when a suitable magnetic field is detected.
When the sensor is activated, an inbuilt LED illuminates.
The module is ideal for Arduino, robotics, position sensing, speed detection, and automation applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Sensor Type: Hall Effect Magnetic Switch.
Sensor IC: A3144 / A3144-compatible.
Operating Voltage: 4.5–24 V DC for common A3144-based versions.
Output Type: Digital, Open Collector.
Output Logic: LOW when magnetic field is detected.
Number of Pins: 3.
Interface: VCC / GND / Signal.
Status Indicator: Onboard LED.
Detection Method: Magnetic Field Detection.
Operating Temperature: -40°C to +85°C.
Board Dimensions: 18.5 × 15 mm.
Mounting Type: PCB Module.
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi, STM32 and other microcontroller platforms.
Applications: Magnetic position sensing, proximity detection, rotational sensing, speed measurement, motor control, robotics, automation and Arduino projects.
