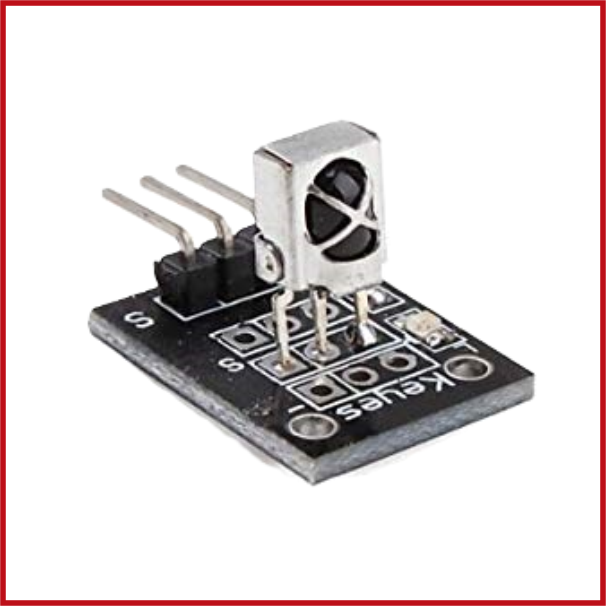

Infrared sensor receiver module KY-022
SKU: ARD-0046-G01
Price on request
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The KY-022 Infrared Receiver Module is a small IR receiver that detects and decodes infrared signals from remote controllers and other IR transmitters.
It has an integrated 38 kHz infrared receiver and a digital output signal that can be read by Arduino and other microcontroller platforms.
The module is widely used in remote control, wireless switching, robotics, and automation applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Infrared Receiver Module.
Sensor Type: Infrared Remote Receiver.
Operating Voltage: 2.7–5.5 V DC.
Carrier Frequency: 38 kHz.
Output Type: Digital.
Output Logic: Active Low.
Reception Range: 18 m, depending on transmitter and conditions.
Reception Angle: ±45°.
Interface: VCC / GND / Signal.
Number of Pins: 3.
Signal Type: Demodulated Digital IR Signal.
Compatible Platforms: Arduino, ESP32, ESP8266, Raspberry Pi, STM32 and other microcontroller platforms.
Applications: Remote-control systems, wireless switching, robotics, home automation, Arduino projects, electronic control systems and DIY electronics.
