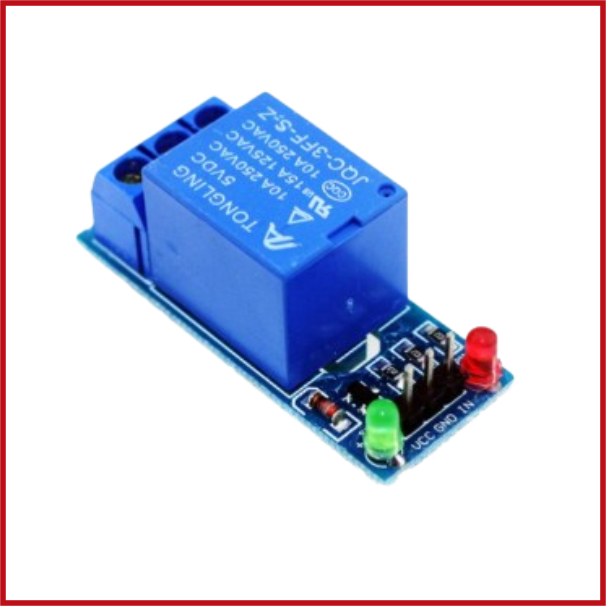

Arduino 1 way 5V low level trigger relay module
SKU: ARD-0055-G02
Sold by Select Automation
Final price R 37.09
R 32.25 excl. VAT
Availability: In Stock (3 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Arduino 1-Way 5V Low-Level Trigger Relay Module is a tiny relay interface board that allows 5V microcontrollers like Arduino, ESP32, STM32, and Raspberry Pi (with suitable logic levels) to safely manage high-voltage AC or DC loads.
The module has a single channel 5V relay with low-level (active LOW) triggering, which enables a microcontroller to operate appliances, motors, pumps, lighting, and other electrical devices.
Many variants integrate opto-isolation and indicator LEDs for increased reliability and status monitoring.
Standard modules are rated to switch 10A at 250VAC or 30VDC.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Relay Module.
Channels: 1.
Relay Coil Voltage: 5V DC.
Trigger Type: Low-Level (Active LOW).
Control Voltage: 5V Logic.
Control Interface: VCC, GND, IN.
Relay Contacts: COM, NO, NC (SPDT).
Maximum AC Load: 250V AC, 10A.
Maximum DC Load: 30V DC, 10A.
Trigger Current: 5 mA.
Contact Material: Silver Alloy.
Relay Type: Electromagnetic.
Indicator LEDs: Power LED and Relay Status LED.
Mounting Type: PCB Module with Mounting Holes.
Dimensions: 50 × 26 × 18.5 mm.
Operating Temperature: -25°C to +70°C.
RoHS Compliant: Yes.
