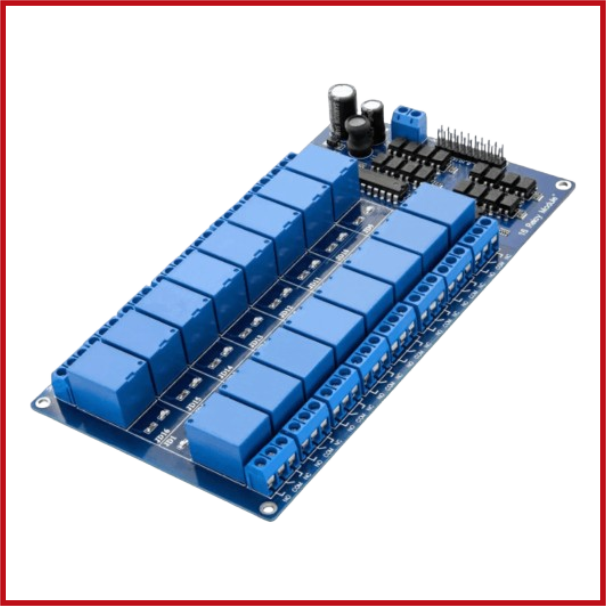

Arduino 12V 16 way relay module optocoupler isolation low level trigger
SKU: ARD-0056-M01
Sold by Select Automation
Final price R 292.18
R 254.07 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Arduino 12V 16-Way Relay Module is a multi-channel relay control board that allows you to switch numerous electrical loads with Arduino and other microcontroller systems.
It has 16 independent relay channels, optocoupler isolation, and low-level trigger inputs, ensuring electrical isolation between the control and relay circuits.
The module is ideal for home automation, industrial control, lighting systems, robotics, and other applications that require several independently controlled relay outputs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: 16-Channel Relay Module.
Number of Relay Channels: 16.
Relay Supply Voltage: 12 V DC.
Trigger Type: Low-Level Trigger.
Isolation Type: Optocoupler Isolation.
Relay Type: Electromagnetic Relay.
Relay Contact Configuration: SPDT.
Relay Contacts: COM / NO / NC.
Relay Contact Rating: 10 A at 250 V AC / 10 A at 30 V DC.
Control Input: Digital Low-Level Signal.
Status Indicators: Individual LED Indicators.
Interface: Control Input Header and Power Supply Terminals.
Protection: Optocoupler Electrical Isolation.
Compatible Platforms: Arduino, Raspberry Pi, ESP32, ESP8266, STM32 and other microcontroller platforms.
Applications: Home automation, industrial control, lighting control, appliance switching, motor control, robotics, security systems and multi-channel Arduino projects.
