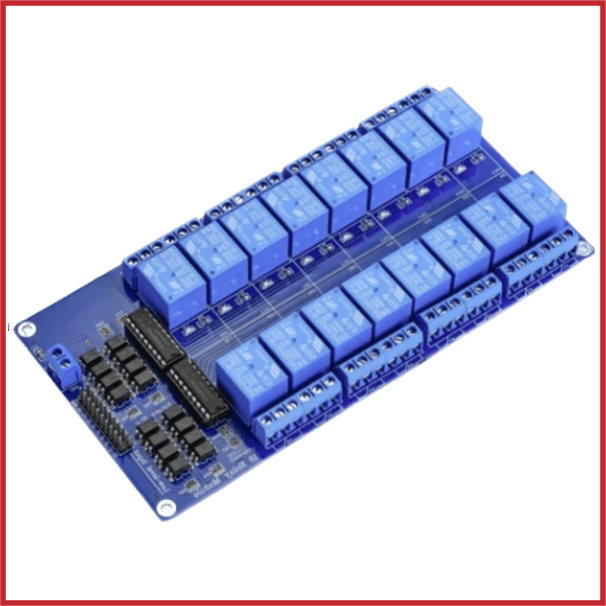

Arduino 5V 16 way relay module optocoupler isolation low level trigger
SKU: ARD-0057-M01
Price on request
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Arduino 5V 16-Way Relay Module is a multi-channel relay control board that can manage up to 16 electrical loads using an Arduino or other microcontroller.
It has 5V electromagnetic relays, optocoupler isolation, and low-level trigger inputs, which improve electrical isolation and resistance to interference between the control and relay circuits.
Each relay channel can be operated individually and includes NO, NC, and COM connections for flexible AC or DC load switching.
It is appropriate for automation, lighting control, appliance switching, robotics, and multi-channel control applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: 16-Channel Relay Module.
Number of Channels: 16.
Operating Voltage: 5 V DC.
Relay Type: Electromagnetic Relay.
Relay Coil Voltage: 5 V DC.
Trigger Type: Low-Level Trigger.
Isolation Type: Optocoupler.
Relay Contact Configuration: SPDT.
Relay Contacts: COM / NO / NC.
Relay Contact Rating: 10 A at 250 V AC / 10 A at 30 V DC.
Control Input: Digital Low-Level Signal.
Status Indicators: 16 × LED Indicators.
Interface: VCC / GND / IN1–IN16.
Compatible Platforms: Arduino, Raspberry Pi, ESP32, ESP8266, STM32 and other microcontroller platforms.
Applications: Home automation, industrial automation, lighting control, appliance switching, motor control, robotics, security systems and multi-channel Arduino projects.
