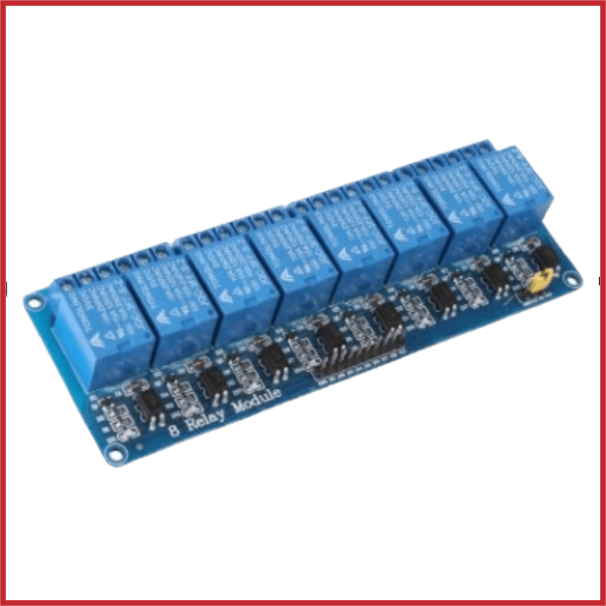

Arduino 8 Channel 5V Relay Module
SKU: ARD-0059-M01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Arduino 8-Channel 5V Relay Module is a multi-channel relay control board that enables Arduino and other microcontroller platforms to individually manage up to eight electrical loads.
It has eight 5V electromagnetic relays with SPDT contacts that provide NO, NC, and COM terminals for flexible AC and DC load switching.
Individual LED indications affirm the operational condition of each relay, making the module ideal for home automation, lighting control, appliance switching, robotics, and industrial control applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: 8-Channel Relay Module.
Number of Channels: 8.
Operating Voltage: 5 V DC.
Relay Type: Electromagnetic Relay.
Relay Coil Voltage: 5 V DC.
Relay Contact Configuration: SPDT.
Relay Contacts: COM / NO / NC.
Relay Contact Rating: Up to 10 A at 250 V AC / 10 A at 30 V DC.
Control Input: Digital Signal.
Trigger Type: Low-Level Trigger.
Status Indicators: 8 × LED Indicators.
Interface: VCC / GND / IN1–IN8.
Compatible Platforms: Arduino, Raspberry Pi, ESP32, ESP8266, STM32 and other microcontroller platforms.
Applications: Home automation, lighting control, appliance switching, motor control, robotics, industrial automation, security systems, Arduino projects and DIY electronics.
