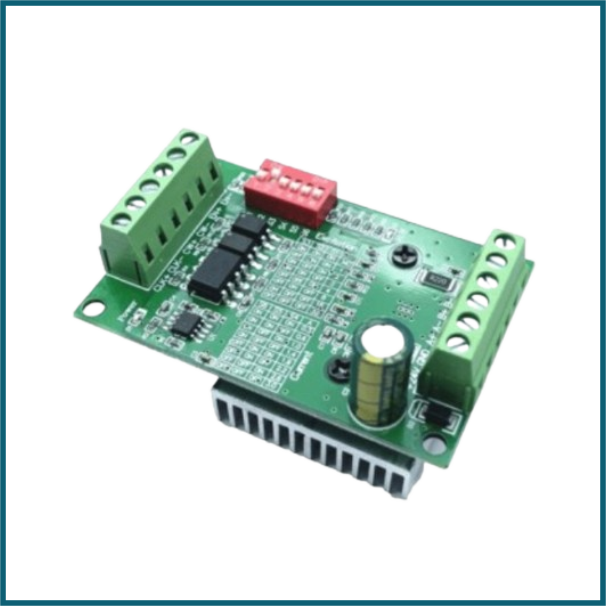

TB6560 3A Single Axis Step Motor Controller
SKU: ARD-0061-M01
Price on request
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A very basic driver, the TB6560 stepper motor driver is intended for use with 42,57,86 steppers operating between 3A and 5V.
It features the new Toshiba TB6560AHQ chip with a 6N137 high-speed Optocoupler, which is intended to give high speed without step out, and may be used with two or four-phase motors with four or six wires.
This driver has a big heat sink, overheating protection, low-voltage and over-current protection, and both of these features are included even if it doesn't necessarily produce a lot of heat.
Buy currently uses Select Automation shop pricing and checkout.
Specification:
Operating Voltage: 10V to 35V (Recommended Switch Power Supply DC24V).
Rated Output: ± 3A ; Peak 3.5A.
Microchip: Original Toshiba TB6560AHQ.
Selectable Excitation Modes: 1/1 ; 1/2 ; 1/8 ; 1/16 Step.
Overheating Protection: Passive Heat Sink.
Short Circuit Protection: Over-current Protection with Low-voltage Shutdown.
Dimensions: 50 x 75 x 35 mm.
Additional Features: Automatic Half-Decay.
Adjustable Decay Settings (0%/25%/50%/100%).
6N137 High-Speed Optical Coupling.
